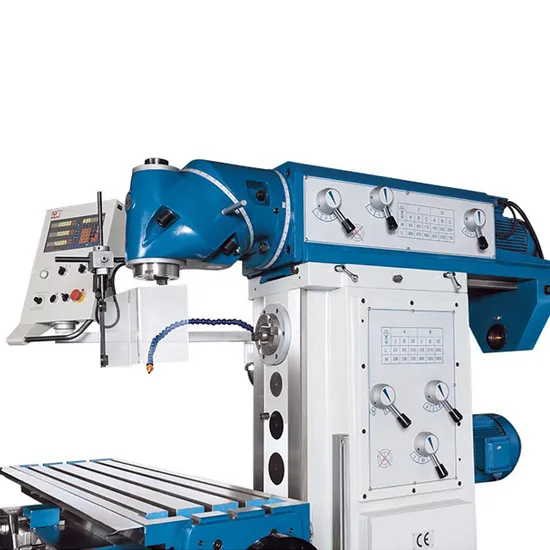

Xq6432 Universal RAM Type Milling Machine
| US$7,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XQ6432
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Universal RAM Type Milling Machine
Xq6432
Table Size
1370X320
Table Travel
1000X380X400
Spindle Taper
ISO40
Spindle Speed
45-1600(V)
Spindle Speeds
35-1500 (H)
RAM Travel
400
Main Motor Power
3kw
Horizontal Motor Power
3kw
Worktable Rotary
45 Degree (Optional)
Transport Package
in Wooden Case
Specification
XQ6432
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
80 PCS/Month
Product Description
XQ6432 universal ram type milling machineFine graduated feeds in all axis, driven by servomotor
Universal mill head
column with Horizontal spindle
worktable rotary can be available.
ram box control speed changing.
| Description | XQ6432 | XQ6432A | XQ6432C | ||
| Table size | mm | 1270*320 | 1370*320 | 1370*320 | |
| X/Y/Z travel | mm | 720*300*400 | 820*300*400 | 1000*380*400 | |
| MAC rotary angle of table | ° | OPTIONAL ±45 | |||
| Max table weight | Kg | 300 | 300 | ||
| T-slots(NO./width/pitch) | mm | 3*14*80 | 3*14*80 | ||
| Shaft speed series and range | rpm | 45-1660 35-1500 | VERTICAL 45-1660(11 HORIZONTAL 35-1500 (12 | ||
| arm | mm | 400 | 400 | ||
| distance between spindle center line and table surface | mm | 75-475 | 75-475 | ||
| distance between spindle nose and table surface | 260-660 | 260-660 | |||
| distance between spindle nose and arm | mm | 180 | 180 | ||
| Spindle taper | 7:24 ISO40 | 7:24 IS040, | |||
| table rapid speed(X/Y/Z) | MM | 1000,1000,750 | 1000,1000,750 | ||
| Table feed(X/Y/Z) | mm | X,Y:30-830 Z:23-625 | |||
| Main motor power | KW | VERTICAL 3kw HORIZONTAL 3kw | |||
| Feed motor | KW | ||||
| Dimensions | Cm | 200*170*190 | 180*170*193 | 190*1750*190 | |
| Machine weight | kg | 1800 | 1850 | 1950 | |
| ITEM | SIZE | QTY |
| Horizontal mill arbors | Ф27 | 1 |
| Lifting Handle | 1 | |
| Draw bar | M16 | 2 |
| Spanners | S22-24,S17-19,S32-36 | 1 |
| Inner spanner | 5,6,10 | 1 |
| Machine vice | 136mm | 1 |
| Screw | M16 | 2 |
| Wash | M16 | 2 |
| Spindle are bor | ISO40 | 1 |
