China Manufacturer Telescopic Unloading Roller Conveyor Vehicle Offloading Conveyor for Box

China Manufacturer Telescopic Unloading Roller Conveyor Vehicle Offloading Conveyor for Box

US$3,300.00
1-4 Pieces
US$3,200.00
5+ Pieces

Basic Info.

Structure
Roller Conveyor
Material
Carbon Steel
Material Feature
Heat Resistant
Application
Chemical Industry, Warehouse
Condition
New
Usage
Unloading Products
Application Industry
Logistics
Weight
700kgs
Transport Package
Wooden Box
Specification
package size: 4520*750*1200 mm
Trademark
NUOHUA
Origin
China
HS Code
84283920
Production Capacity
50000pieces/Year

Packaging & Delivery

Package Size
400.00cm * 100.00cm * 100.00cm
Package Gross Weight
800.000kg

Product Description

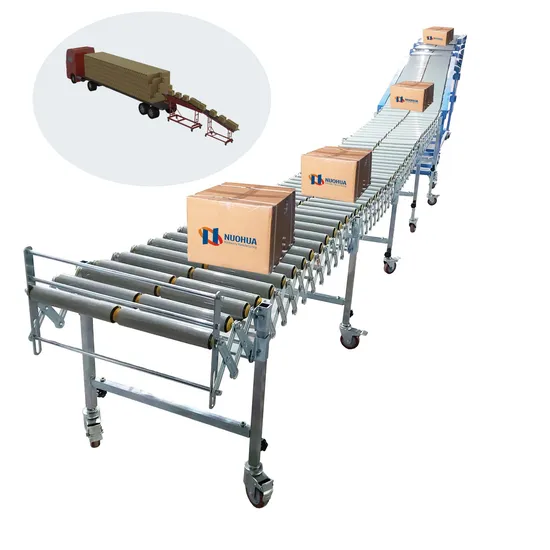

Telescopic conveyor
Telescopic conveyor has been developed as a safe, cost-effective solution for quickly unloading shipping containers or trailers where no level loading dock is available. The telescopic conveyor will extend up to 10m inside the shipping container or trailer and will convey cartons under gravity to an offload point at ground level. The High-Rise Telescopic Conveyor can be further extended outside the shipping container by attaching a flexible conveyor extending conveyor.
Key features include:
* Telescopic extending gravity roller conveyor
* High impact, low inertia, 50mm diameter PVC rollers which can be mounted in fully welded mild steel channel frames powder coated if you needed.
* Conveyor mounted on a heavy-duty box section chassis and fitted with lockable wheeled castors.
* Supplied with a 3m extension track to conveyor product to an offload point.
* Skid plates are also available if required.
Penetration 10m into trailer
Trailer floor height 1.3m - 1.6m
Load height above bed 900mm - 1.2m
Discharge height 1.1m - 1.4m
Rollers 50mm diameter high impact PVC
Load rating 20kg uniformly distributed (80kg at load point and 50kg per linear metre)
Overhanging loads Up to 900mm
End stop plate Yes
Length outside trailer 6.5m, 6 m flexible rolle conveyor
Storage size 4.5m x 1.1m & 3.2m x 700mm
High Rise Telescopic Unloading Conveyor:High Rise Telescopic Unloading Conveyor+ 6m Flexible roller conveyor

Founded in 2008 and based in Hangzhou, China, Nuohua has been in the field of conveyors for more than 15 years. We design and manufacture conveyor systems as well as a wide range of conveyor components. We've set up a distribution center in South Korea in 2008, offering OEM/ ODM flexible conveyors, roller conveyors, etc. to many distributors all over the world. We also handle conveying system projects in and outside of China, mainly cooperating with furniture companies, express enterprises, garment factories, E-commerce warehouses, etc. to offer them automation solutions. More than ten years of expert experience makes us could offer better services and technical support to our customers from the beginning to after sales. We could say a lot more, but we prefer proving ourselves a good supplier through our competitive price, services, and quality!
Q: Are you a factory or trading company? A: We are Professional manufacturer. Q: How to buy? A: Clear your requirements to our sales - get quotation - discuss details - order confirm - deposit payment - drawing reconfirm-production - finished products photo and test video sent - packing - balance payment - delivery Q: What about your delivery period? A: Sample order or small quantity order 3-7 days, bulk production: 20 days. Q: How can you guarantee quality? A: 1,We have completed working system and procedures and we follow them very strictly.
2,We will do strict test running after the machine is finished. Q: How long is the warranty of the product? A: 1 years. Q: What payment terms do you prefer? A: T/T, L/C, West Union, Paypal & MoneyGram and so on. PLEASE be free to contact us if you have any confusion about anything!
