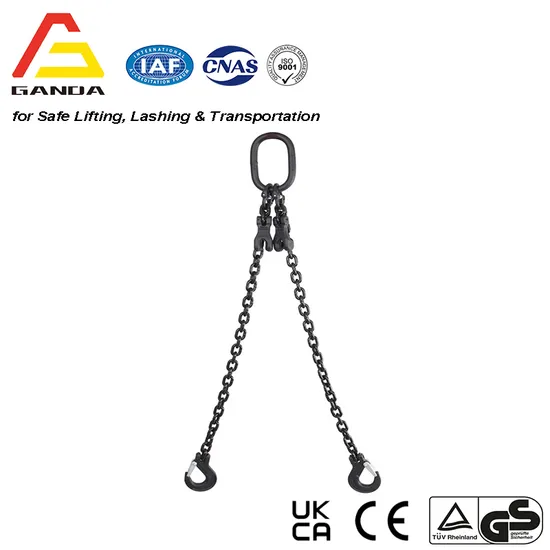

G80 Chain Lifting Sling Two Leg Black Latch Hook

G80 Chain Lifting Sling Two Leg Black Latch Hook

US$12.00-500.00 50 Sets (MOQ)

Basic Info.

Model NO.
G80 Chain Lifting Sling
Type
Chain Sling
Material
Steel
Lifting Capacity
1.12t to 32t
Fixed Form
Master Link + Hook
Lifting Eye Type
Master Link
Rope Core Type
G80 G100 Lifting Chain
Power Source
Manual
Shape
1 Leg, 2 Legs, 3 Legs, 4 Legs
Certification
GS, CE, ISO 9001
Sling Color
Self Color or Painted
Standard
En 818-2
for
Lifting Chain Sling, Chain Hoist, Lever Hoist
Transport Package
Steel Drum Then Pallet
Specification
4MM to 32MM
Trademark
GANDA or OEM
Origin
China
HS Code
7315820000
Production Capacity
10000000m/Year

Packaging & Delivery

Package Size
45.00cm * 31.00cm * 32.00cm
Package Gross Weight
3.000kg

Product Description

80 CHAIN FOR CHAIN HOIST AND LEVER HOIST, BLACK FINISHED. EN 818-7
NOMINAL SIZE MM MATERIAL DIANETER TOLERANCE PITCH WIDTH LENGTH FOR 11 X PITCH WLL PROOF FORCE MIN. BREAKING LOAD
MM TOLERANCE INTERNAL MIN. EXTERNAL MAX.
MM TOLERANCE T kN kN
4 +/-0.2 12 0.25 4.8 13.6 132 0.6 0.5 12.6 20.1
5 +/-0.2 15 0.3 6 17 165 0.8 0.8 19.6 31.4
6 +/-0.2 18 0.35 7.2 20.4 198 1 1.1 28.3 45.2
7 +/-0.3 21 0.4 8.4 23.8 231 1.1 1.5 38.5 61.6
8 +/-0.3 24 0.5 9.6 27.2 264 1.3 2 50.3 80.4
9 +/-0.4 27 0.5 10.8 30.6 297 1.4 2.5 63.6 102
10 +/-0.4 30 0.6 12 34 330 1.6 3.2 78.5 126


ULTIMATE ELONGATION: MIN. 10%
MARK: T 8 AND BATCH NO.
GRADE 80 CHAIN FOR CHAIN SLING, BLACK FINISHED. EN 818-2
NOMINAL SIZE MM MATERIAL DIANETER TOLERANCE PITCH WIDTH WLL PROOF FORCE MIN. BREAKING LOAD
MM MAX. MM Min. MM INTERNAL MIN. EXTERNAL MAX.
T kN kN
6 +/-0.24 18 18.5 17.5 7.8 22.2 1.12 28.3 45.2
7 +/-0.28 21 21.6 20.4 9.1 25.9 1.5 38.5 61.6
8 +/-0.32 24 24.7 23.3 10.4 29.6 2 50.3 80.4
10 +/-0.4 30 30.9 29.1 13.0 37.0 3.15 78.5 126
13 +/-0.52 39 40.2 37.8 16.9 48.1 5.3 133 212
16 +/-0.64 48 49.4 46.6 20.8 59.2 8 201 322
18 +/-0.9 54 55.6 52.4 23.4 66.6 10 254 407
20 +/-1.0 60 61.8 58.2 26.0 74.0 12.5 314 403
22 +/-1.1 66 68.0 64.0 28.6 81.4 15 380 608
26 +/-1.3 78 80.3 75.7 33.8 96.2 21.2 531 849
32 +/-1.6 96 98.9 93.1 41.6 118.0 31.5 804 1290


ULTIMATE ELONGATION: MIN. 20%
MARK: G80 AND BATCH NO.
