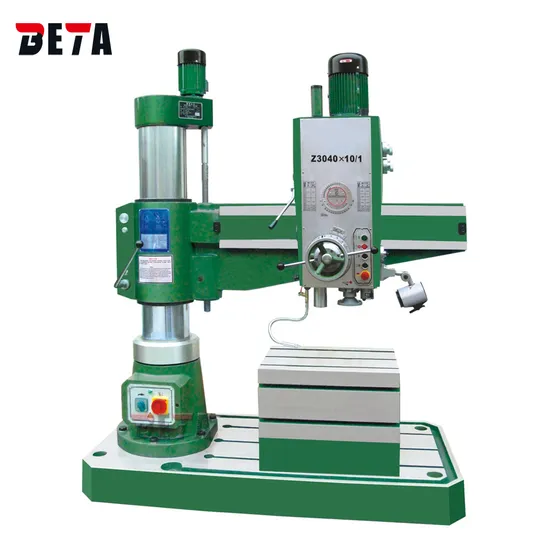

Z3040X10 Multifunctional China Metal Radial Arm Drilling Machine

Product Description

Z3040x10 Multifunctional China metal radial arm drilling machine

Model	Unit	Z3040x8/1	Z3040x10
Max. Drilling capacity	mm	40	40
Distance spindle axis to column generating line	mm	320-820	200-1000
Diameter of column	mm	200	240
Taper of spindle		MT4	MT4
Spindle travel	mm	240	250
Spindle speeds range	r/min	75-1220	71-1800
Spindle speeds series	step	6	8
Spindle feeds range	mm/r	0.1-0.25	0.13-0.54
Spindle feeds step	step	3	4
Max. spindle nose to base	mm	120-860	264-1064
Dimension of worktable surface	mm	400x400x350	400x450x400
Dimension of base	mm	1370x700x160	1500x740x160
Overal size	mm	1407x720x1885	1730x750x2360
Spindle motor power	kw	1.5	2.2
G.W/N.W	kg	1140/1230	1530/1600
Packing dimension	mm	1550x770x2100	1870x970x2200

Features: With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time. With safe and reliable feed safety machine, all parts easy operation and change. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts. Spindle parts are made by special high quality steel head treatment to be made by first class equipments, ensuring high strength and durability. Main gears are machined by gear grinding, the machine ensuring high precision and low noise. Standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts
Radial drilling machine is a type of drilling machine where the radial arm can rotate and lift around the column, and the spindle box usually moves horizontally on the rocker arm. When machining holes on a vertical drilling machine, the alignment between the tool and the workpiece is achieved through the movement of the workpiece, which is obviously very inconvenient for some large and heavy workpieces; The radial drilling machine can be aligned by moving the position of the tool shaft, which brings great convenience to machining holes on large and heavy workpieces in single and small batch production.
It can also be called a radial drill. It is a hole processing equipment that can be used for various forms of processing, such as drilling, expanding, reaming, tapping, and scraping the end face. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among various types of drilling machines, radial drilling machines are easy to operate, flexible, and have a wide range of applications. They are typical and particularly suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general mechanical processing workshops.
