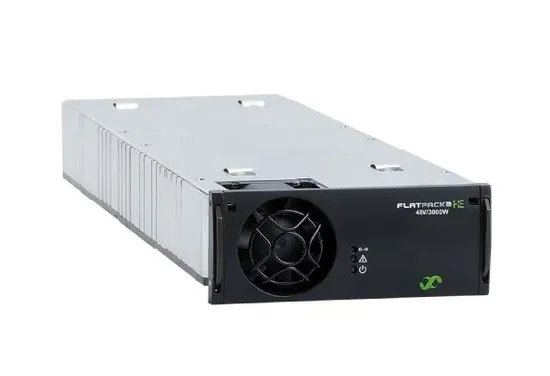

Flatpack2 48V 3000W HE Rectifiers 241119.105 Eltek Rectifier Modules
The original HE rectifier
Since setting the new standard for rectifier efficiency, the Flatpack2 HE family is now available in a variety of voltages and power ratings, all with superior efficiency up to 96.5%.
With more than 4 billion in-field operating hours and a proven cumulative field MTBF of more than 1,9 million hours, Flatpack 2 HE is the only HE (High Efficiency) rectifier with a proven track record.
The line of systems available for Flatpack2 HE 48V rectifiers spans from 8kW 2U racks with complete distribution to multi-cabinet systems in multi MW installations.
APPLICATIONS
Microwave
Fiber Optics
Microwave
Broadband
Datacenters
Central Office
LTE / 4G / WIMAX
Telecom - Mobile / Wireless
Broadband Telecom - Fixed
Telephony Servers / Switches
Mobile Switching Center (Msc)
Radio Base Stations/ Cell Sites
Key Features
Proven Reliability
High Efficiency (HE)
Patented He Technology
Application Flexibility 2kw
Wide Temperature Range
Global Compliance (Ce, Ul)
Power Dense, Up To 33 W/Inch3
POWER UTILITIES
SCADA
POWER UTILITIES
CONTROL & PROTECTION
Specifications

Model	48V / 3000W HE
Part number	241119.105
INPUT DATA
Voltage (nominal)	176 - 277 VAC
Voltage (range)	85 - 305 VAC
Frequency	45 - 66 Hz
Current (maximum) @ nominal input, full load	19.2 ARMS
Protection	Fuse in both lines Varistor for transient protection Disconnect above 305 VAC
OUPUT DATA
Voltage (default)	53.5 VDC
Voltage (adjustable range)	43.5 - 583) VDC
Power (maximum)	3000 W
Power @ 85 VAC	1380 W
Current (maximum) @ nominal input, full load	62.5 A
Ripple, 30MHz bandwidth	< 150 mVpp
Psophometric noise	< 2 mVRMS
Static Voltage regulation	±0.5% for 10 - 100% load
Dynamic Voltage regulation	±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms
Protection	Fuse, Short circuit proof, High temperature protection, Hot plug-in inrush current limiting
Efficiency @ nominal input	96 %
OTHER SPECIFICATIONS
Isolation	3.0 kVAC - input to output, 1.5 kVAC - input to earth, 500 VDC - output to earth
Alarms: Red LED 'on'	Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure
Warnings: Yellow LED 'on'	Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage
Normal (module running): Green LED 'on'
Acoustic noise, full load @ Tambient = 25°C full load @ Tambient = 40°C	< 40 dBA < 58 dBA
MTBF (Telcordia SR-332 Issue I method III (a))	>300 000 (@ Tambient : 25 °C)
Operating temperature	-40 to +75°C (-40 to +167°F)4), humidity 5 - 95% RH non-condensing
Temperature de-rating	>55°C4) (131°F), 2100W @ 75°C (167°F)4)
Storage temperature	-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Dimensions[WxHxD] / Weight	109 x 41.5 x 327mm (4.25 x 1.69 x 13") / 1.95 kg (4.3 lbs)
DESIGN STANDARDS
Electrical safety	EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, UL 60950-1:2014, CSA C22.2 No.60950-1-07:2014, IEC 60950-1:2013
EMC	EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019, EN 61000-3-2:2019 ETSI EN 300 386 V.2.1.1, Telcordia NEBS GR1089 CORE
Marine	DNVGL-CG-03392)
Environment	ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) EU 2015/863 (RoHS) & 2012/19/EU (WEEE) Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised

power derating, maximum 1000W @ 230Vac 16 2/3 Hz
only valid for part number 241115.105M
57.6V for HW revision ≤ 5
from HW revision 6: shutdown at 95°C with de-rating to ~1000W
