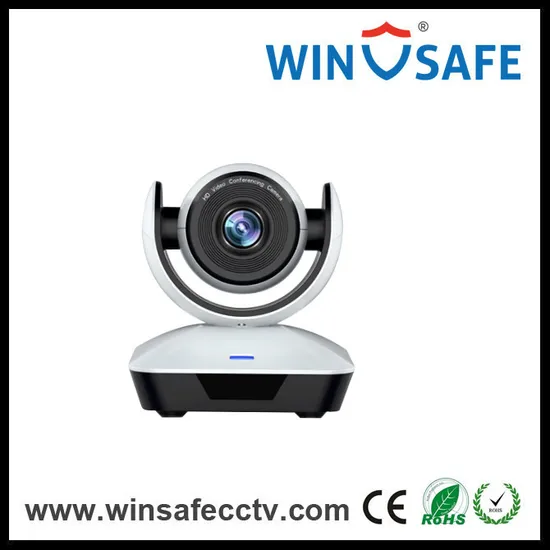

USB Type C Camera HDMI 10X Optical Zoom Video Conference PTZ Camera Webcam Studio Learning
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
UHV-HU2-10
Degree of Innovation
USB Camera
Type
USB Camera
Transport Package
Neutural Packing
Specification
CE, FCC, Rohs etc.
Trademark
OEM/WINSAFE
Origin
Shenzhen, Guangdong
HS Code
8525801390
Production Capacity
5000PCS/Month
Product Description
USB 2.0 Camera+HDMI+10X Zoom video conference PTZ camera webcam
Product Features
* Zoom: 10X Optial Zoom & 4X Digital Zoom
* 62.5° degree field of view
* USB & HDMI simultaneously output, can set independent resolution
* HDMI output up to 1920x1080p60 Full HD
* Smart USB2.0 type C output, support multiple compress video format, max. output MJPG 1920X1080P60, adapt to different video application
* USB2.0 compatible with Windows, MAC OS, Android, Linux, Google Chrome and more
* Image flip function support upside-down installation
* Accurate pan tile motor control, ultra smooth PTZ movement
* Up to 128 presets
* Support RS232, RS485 serial control
* Standard Sony Visca and Pelco P/D protcol
* Support WDR, 3D-Noise Reduction function
* Adjustable lens parameters: Brightness, Contrast, Color, Resolution, Gama, AutoGain etc.
* Both ARM & ISP firmware can be easily upgraded via USB type C port
High-definition image
With latest Advaned ISP, 1/2.8 inch SONY sensor to deliver sharp and high-definition image with realistic color; Support WDR, backlight compensation, noise reduction, to adjust image for different working environment.
Multi-Language menu
OSD menu support Simplified Chinese, English, Russian, Chinese Traditional, Korean and more.
Easy operation
Matched with IR remote controller, to control PTZ movement, 10 presets and adjust functions as preference in the OSD menu
Plug and play
USB2.0 and HDMI video output 1080p60 resolution, plug and play, work with any of your favorite video conferencing software. Compatible with almost video conferencing software(UVC1.5 protocol standard)
VISCA control is supported
Support RS232 and RS485 control for different control application and other devices connection, 128 presets adjustable for VISCA control.
Smooth and quite PTZ movement
Smart, compact and decent mechanism, to bring smooth, silent and accurate PTZ movement, to make sure everyone is participated in the meeting.
| Model No. | UHV-HU2-10 | |||
| Video Port | HDMI, USB2.0 Type-C | |||
| Video Resolution | HDMI: 1080P60/50/30/25; 720P60/50/30/25 | |||
| USB Type-C: MJPE: 1920*1080P60; 1280*720P60; 1024*576P60; 640*480P60;640*360P60 YUY2: 640*480P30; 640*360P30; 480*640P30; 360*640P30 | ||||
| Image Sensor | 1/2.8 inch high quality, 2.4MP CMOS Sony sensor | |||
| Zoom | 10X optial zoom + 4X digital zoom | |||
| Field of Viewing | 62.5°(wide) - 6.43°(tele) | |||
| Focal Length | f=4.7(near) - 47mm(far) | |||
| Iris | F1.6 -3.0 | |||
| Pan Rotation Angle | -170° - +170° | |||
| Tilt Rotation Angle | -30° - +90° | |||
| Pan Rotation Speed | 0° - 120°/s | |||
| Tilt Rotation Speed | 0° - 80°/s | |||
| Preset | 128 via Visca, 10 via IR remote | |||
| S/N Ratio | Above 50dB | |||
| Minimum Lux | 0.01Lux | |||
| White Balance | Auto / Manual / Indoor / Outdoor / Sodium Lamps / Fluorescent Lampls | |||
| Focal Mode | Auto / Manual / Push | |||
| 2D&3DNR | Supported | |||
| WDR | Supported | |||
| Anti-Flicker | 50HZ/60HZ/OFF | |||
| Input Voltage | 5V 1000mA(via USB type C) / DC12V 2A(via Power Adapter) | |||
| Dimension | 148mm x 132mm x 162mm | |||
| Net Weight | 0.9kg(2LB) | |||
| Accessory | Power adapter, Power cable, 3m USB Type-C cable, manual, warranty card | |||
| Color | Black/Silver/Grey | |||
