Bnt Motorized Computer Lift Audio Video Conference System LCD Monitor Lift for 22 Inch Hidden Desk LCD Monitor Lift Mechanism

Product Description

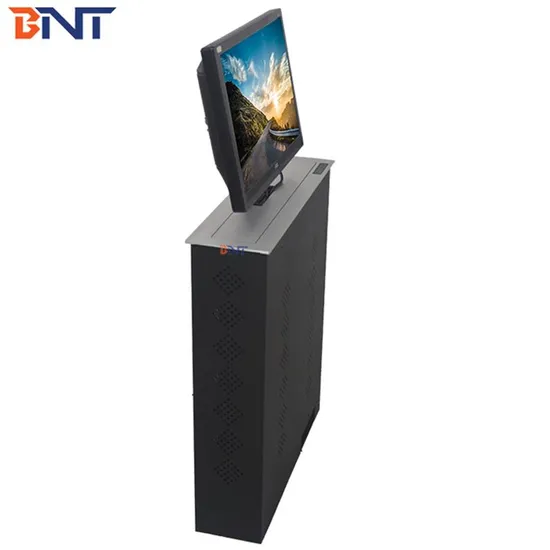

BBL-22 lcd monitor lift is designed as advance hiding equipment for audio video system.
It fits the 19inch of different brands of monitor by the universal mounting panel.
BBL series supply different size of lcd monitor lift for different size of monitor, 17inch,19inch 22inch, 24inch size are available.
Motorized control by touch switch, remote control or central control, the screen could be rising up form the conference tables automatically to present the workable screen by the lift driving.
Once finish using, the screens go down automatically until hidden into table, then it will be power off automatically to protect the screen.
With double super-quite synchronous motor, raising up and down by tank chain and mechanical gear, the lift is smooth and quiet when working.
It is widely use in conference system, video conference system, tv conference system, financial analyzing system, advanced office system,lecture and training room with conference table& computer desk,etc.

Item Series	LCD Monitor Lift
Item Model	BLL-22
Style	LCD lift without monitor
Products consitute	LCD monitor lift+Remote control
Material	Aluminum alloy draw bench panel
Panel size	600*170*5mm
Box size	575*153*625mm
Panel thickness	5mm
Lift mount size	520*95mm
Packing size	73*72*30mm
Voltage	110V,220V,240V
Power	20~25W
Tilting angle	0~15°
Single trip time	30s
Color	Silver /Black matt/ Gold
Remote distance	10m
Control Way	Touch kep-press/Remote control/ RS485 central control
Running Way	Tubu motor with rack driving
Protection way	Cable Manager/Protection finger from nipping
Power Protection way	Monitor turn off automatically

Company Profile
Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.
→13+ years of professional design and production of lifting, after 13+ years of technical improvement and upgrading, the production technology is mature and stable, and the quality has been recognized by the foreign brand AH, One Element.
→Product design team, 8 engineers with more than 10 years of CAD drawing experience, can provide design drawings within 1 hour if customized products.
→Product quality is recognized by AH, One element and become their partner.
