Double Channel Hamburger Box Machine

Double Channel Hamburger Box Machine

US$38,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HBJ-D1200
Required Paper
Single Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
Productivity
120-300PCS/Min
Material
200-600g
Power Source
380V 50Hz
Total Power
9kw
Box Length
100-450mm
Degree
5-40
Box Width
100-385mm
Hight
15-200mm
Packing Size
4000*1800*1700mm
Weight
3t
Transport Package
Wooden Package
Specification
CE
Trademark
Dakiou
Origin
Zhejiang, China
HS Code
84411000
Production Capacity
50set/Month

Product Description

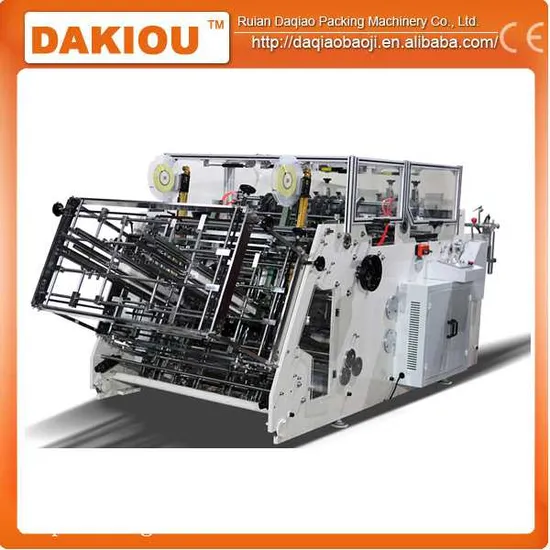

Dakiou manufacture Double channel hamburger box machine
(Hamburger paper box machine, fried chicken box machine, cake box machine, lunch box machine, noodle packing machine)
The machine is an ideal choice to produce disposable snack boxes, hamburger boxes, chips boxes, hot dog box, fried chicken box, cake box, lunch box, lunch box, noodle packing box...Etc.
Work Principle
The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and then sends it to the shaping mold, During this procedure, The cardboard has been glued and you can adjust the position of the gluing, The volume of gluing can be measured while in progress without stopping work, After being glued, the shaped cardboard will be conveyed to a collector to be auto-calculated as the preconcert quantity and auto mark without stopping production.
2. Features of the machine
1. The finished products are counted automatically by a counter device.
2. It has low load power, about 10KW, Speed adjust by inventor brings more accurate.
3. The carton erecting machine uses a PLC encoder, has high automatic function, easy to operate and adjust, and causes less fault, Maintenance is convenient.
4. It uses a servo control system. Making it more smooth, accurate, stable and with small vibration.
3. SPECIFICATIONS
Productivity: The highest production speed can be 720pc/m(According to different size food box)
Material: 200-600g/m2corrugating paper thick: 1.5mm
Power source: 380V 50HZ
Total power: 9KW
Carton size:
Length: L 100-450mm degree: 5° -40°
Width: B 100-385mm high: H 15-200mm
Packing size: 4m× 1.8m× 1.7m
The machine cover area of 3m× 4m
If you are interesting in our machine,please feel free to contact with us

:+86 13819753964
