CNC Multi Station Pipe End Forming Machine for Air Conditioner

Product Description

Product Description

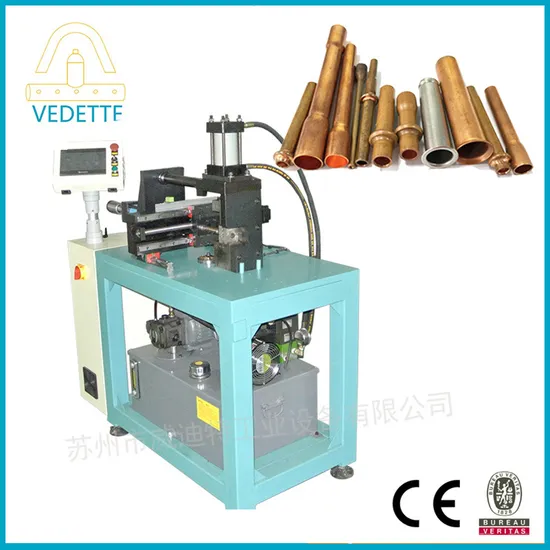

Single-end pipe recycling machine
PRODUCT NAME:
Single-end pipe recycling machine
PRODUCT INTRODUCTION:
By recycling method , this machine can make pipe end with big shape variable.
Product Features:
PLC Centralized control
There is a manual press-in centralized lubrication system
Toot switch or button box control
Tank frame integrated design, air cooling or water cooling
Counter function

Product Parameters
Technical Data:

Max processing diameter	Copper pipe Φ13mm	Copper pipe Φ20mm	Copper(aluminum) Φ40mm
Max wall thickness	1.8mm	2.0mm	3.0mm
Processing station	1-6	1-6	1-3
Processing efficiency	3-15s/p	3-15s/p	5-20s/p
Electric control mode	PLC	PLC	PLC
Operation	AT/Manual	AT/Manual	AT/Manual
Feeding	Manual	Manual	Manual
Drive	Hydraulic/Servo	Hydraulic/Servo	Hydraulic/Servo
Processing method	Cold Forging	Cold Forging	Cold Forging/Rotary pier
Punch stroke	100mm(adjust)	100mm(adjust)	150mm(adjust)
Max clamping stroke	80mm	80mm	120mm
Max force	2000kg	3000kg	5000kg
Max machining depth error	<±0.2	<±0.2	<±0.2
Max coaxiality error	<0.1mm	<0.1mm	<0.1mm
Power	380V 50hz	380V 50hz	380V 50hz
Hydraulic motor	2.2kw	3.7kw	5.5kw
Hydraulic pressure	5-8Mpa	5-8Mpa	5-8Mpa

Detailed Photos
PRODUCT AND PIPE PHOTOES
Company Profile
Factroy Tours :
Factroy Introduction: Established in 2011, Suzhou VEDETTE Industrial Equipment Co., Ltd. is a professional factory producing metal pipe forming machine , include CNC copper and stainless steell pipe punching machine, pipe spinning machine, punching flanging machine, pipe end processing machine, non¬chip open feeder, bending machine , as well as copper and stainless steel fitting.
Now VEDETTE owns factory area about 2000 square meters and 30 workers, includes professional staffs specializing in mechanical and electrical integration control, computer software, three-dimensional structure design and digit control technology.t has strong technical ability in design, development, production, sales. Besides, it also has good production capacity and prefect after-sales service system.
"VEDETTE" 's main products includes metal pipe punching machines, pipe spinning machines, pipe end forming machines,CNC automatic pipe cutting machines , pipe bending machines etc. Since it established , it has cooperated with many domestic customers such as CRRC ,
DUNAN,SANHUA,GREE, LUVATA,SUNRAIN and expand overseas market in South African, Germany,Indonesia, Vietnam and Korea.Through many years development,we have improved quality and technology greatly. Also , we have developed a series of different models of product,win high reputation.we can provide different kind of machines according to customer need,provide pre-sale and after-sale service,not only provide good quality product,but also provide technical training to customers. And provide professional technical for maintenance and after-sales service, as well as product software upgrades free of charge.
Innovation and cooperation are the long-term policy of "VEDETTE", Based on idea " quality first, service first , price second",,VEDETTE will create the best products and provide the most satisfactory services,.we sincerely hope to become your faithful friends and partners!
Packing and Delivery:

Our machine is delivered within 15-20 days after the deposit confirmed.

The machine is usually packed in a professional exported case by shipping way.

Our services:

Before-sales service:

1,We will help our customer confirm the right model according to the offered pipe inforamtion.

2,You are very welcome to visit our factory to see our machine how to work before you place an order with us.

After-sales service:

1,Free installation,trial start and adjustment,training.

2,We guarantee machine quality for one year.During this year,if spare parts of the machine we damaged,we can send the components to the customer by DHL,TNT for free.

3,If customer have any question about operation when using our machine,we will reply you by email/telephone/other online chat tool within 24 hours.
