Hongfa Hft300 Cement Floor Roof Terrazzo Tile Making Machine Price Tile Paver Brick Machine Terrazzo Tile Making Machine in Kazakhstan Pakistan Bolivia Chile

Product Description

Hongfa HFT300 Cement Floor Roof Terrazzo Tile Making Machine Price Tile Paver Brick Machine Terrazzo Tile Making Machine in Kazakhstan Pakistan Bolivia Chile

Where can see Terrazzo Tiles?


Terrazzo Floor Tile Are Everywhere In Your Life→
Function of Terrazzo Tile Making Machine:
• Swimming Pool, Courtyard, Civil Architecture
• Square,Sidewalk,
• Hospital,Kitchen,Washroom,School, Public Institution, Office Building

So,Terrazzo Tile Making Machine are Widely Application.

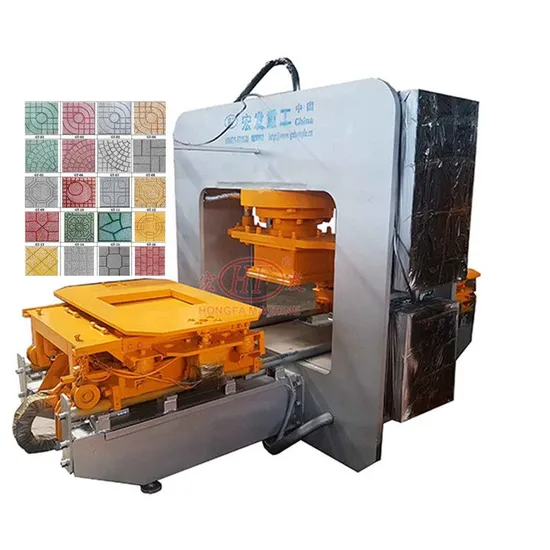

Product Brief Introduction HFT300 is terrazzo tile making machine, adopts full-hydraulic press and pneumatic to shape.Shaping quickly and dependable parameter ,high productivity,high quality and competitive price.

SPECIFICATIONS FOR HONGFA CEMENT TILE MACHINE
Specification	Main tile size	mm	600 x 600 MAX.
	Tile type	Decoration floor tile
	Power	kw	18.5
Main performance parameters	Forming pressure	T	180-250T
	Quantiy / Mold	pcs	1 or 2, depends on size
	Capacity / 8 hours(1 shift)	pcs	1200-2400
Others	Dimension	mm	3000 x 1800 x 1950
	Weight	T	5.2
	Relevant machinery	Mixer with hopper, mould(s), manual tile machine, trolley, color sprayer etc.

1. Technology: international initiative, the leading domestic, guide consumption, contribute to society.
2. Operation:high automation, simple operation, easy maintenance.
3. Personnel:personal demand, labor intensity is small. product specification: 400 * 400, 300 * 300 ,200*200 (mm). Thickness is adjustable.
4.It can make kinds of color tiles, such as roof tiles, ridge tiles, edge tiles, drainage tile and gutter tiles and so on. Besides, through changing the mould, it also can make various of top grade floor tiles, such as terrazzo floor tiles, polishing shot peening floor tiles and washing floor tiles.


Terrazzo floor tile making machine / terrazzo grinding machine

Terrazzo floor tile making machine need low labor cost,only one or two ordinary worker will be enough.high pay back,the concrete floor tiles are in large demand.

You May Want To Know→ → →
Face To Face,Answer to Question, Remove your doubts...

=Q:Raw material of Terrazzo Tile Making Machine need?
A:Cement,Concrete,Sand,Stone powder,Crushed stone etc.
=Q:What's the output of Terrazzo Tile Making Machine Every day?
A:2-4pcs every minute,Around 2600PCS every day.
=Q:What's the size of terrazzo tiles I can make?
A: 2-3 workers will be ok in the terrazzo tile making machine production line.

Working Process
How To Make Terrazzo Tiles By Our Hongfa Machine?→ → → →
Floor tile making machine/making tile machine whole production line show you:
Work flow: Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Mould unloading --- Forming tiles ---Onto the tiles shelf --- --- Stacking --- Curing (24 hours)--- Polishing --- Finished products.
1. At first,the raw materials are put into the bucket elevator, then deliver to the rolling mixer,at this time,you must add some water into it.
2. After mixing, the mixture come into the dosing feeder,then,measurable mixture that one tile need will put down on the mould below through a small hole.
3. Then,a tile can be formed by high pressure,the pressure is about 200tons. So the produced tile is very stable and dense.I think the constructor can boldly walk on the paved roof.
4. By the way,the tile need to dry out for about 10 days.Then you can paint.




Part of Machine

* Product feature:Good fracture resistance,high abrasive resistance strength,good antiskid,wears well and elegant taste about terrazzo tile making
machine.

*Chassis:is made of cast steel,overall stable performance and insure the quality of tile.

* Polishing heads:1 or 4 polishing heads,each polishing head with one abrasive-disk.According to needs,
each abrasive disk can coarse grind by diamond polishing head and finally grind.


♦1.Flexible Delivery Way:FCL sailing or LCL sailing,Air Transportation,parts or document with express delivery.
Hongfa Group Established in 1990.
A leader developer& Manufacturer of Construction Material Machinery.
Main business Range & Products:
Lightweight Panel Production Line, AAC Block Production Line, Full Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line, Concrete Pipe Machine, Concrete Tile Machine, Concrete pipe machine, Bidirectional Hydraulic Brick Maker, Mining Machinery, Concrete Batching plant, Stereo Parking Equipment, etc.

Hongfa Strengths
More than 30 years experience. 1500 employee (50+engineers)
2) Total 4 factories with 440,000M2 and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish a win-win business relationship
Group'Honor
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.National Enterprice Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protectionb Demonstration Unit
4.High and New Tech Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit

We will provide you with a set of spare parts for free!

1.Analyzing:Plant size, budget, automatic degree, local condition....analyzing all of your requirements
2. We offer technical support until the workers know how to operate.
3. The operating instruction will go to the customers with the equipment. Technology data and relative files for gypsum board plant
4.We provide lifelong guidance . Visiting clients in regular times.
5.Excellent easy-broken parts support for buyers. Easy-broken parts guarantee for one year.
