OEM Fingerprint Reader Fbi′s Piv-071006 Certified
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
BioSLIM
Kind
Fingerprint Reader
Scan Speed
30 Frames Per Second
Scanning Light Source
LED
Usage
POS, OEM Integration
Network Scanning
USB 2.0
Scanning Element
CMOS
Optical Resolution
500 Dpi
Application
National IDS, Voter Registration
Image Quality
Fbi′s Piv-071006 Certified
Transport Package
Carton Box
Specification
59mm x 32mm x 13.6mm
Trademark
BioID
Origin
China
HS Code
84719000
Production Capacity
10000 Units Per Year
Product Description

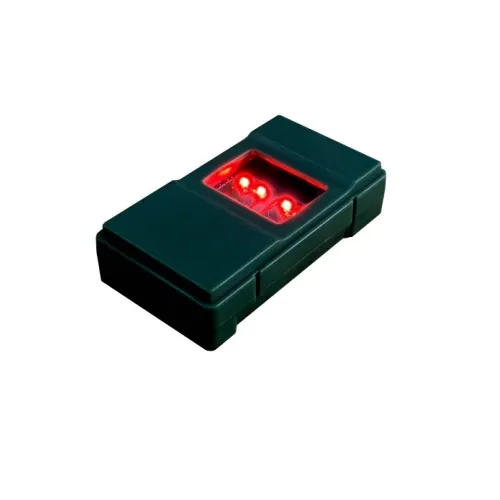

BioID Technologies' BioSLIM is the most compact fingerprint reader with high levels of accuracy and performance in the field. The BioSLIM employs the most advanced optical and live finger detection technology plus virtual serial port protocol that enable users to capture fingerprints immediately after physical connection of USB plug without any setup or installation steps. The BioSLIM also provide the highest level of security available by featuring on-device encryption of fingerprint templates which make it optimal device for banking industry, POS integration, national ID enrollment and authentication, etc.PRODUCT PHOTOS
TECHNICAL PARAMETERS
| Fingerprint Types | Single flats |
| Image Size | 300 x 400 pixels |
| Platen Scanning Window | 18mm x 22mm |
| Image Quality | FBI's PIV-071006 certified |
| Resolution | 500 dpi, 256 gray levels |
| Image & Template Format | BMP, WSQ, ISO/IEC 19794-2/4 |
| Acquisition Mode | Auto capture & manual mode |
| Template Format | ANSI/NIST 378, ISO/IEC 19794-2 |
| FTM/Encrypted Chip | RSA Keystore, Signing, RAS-2048, SHA-256, X509 |
| MTBF | More than 50,000 hours |
| Dimensions | 49mm(L) x 32mm(W) x 13.6mm(H) |
| Weight | 30g |
| Interface | USB 2.0 for data transfer & power supply |
| Operating System | Windows and Android OS |
| Software & SDKs | Scan demo and essential APIs for integration |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity Range | 10% to 90%, non-condensing |
