Roll Paper Die-Cutting and Creasing Machine 210times/Min

Roll Paper Die-Cutting and Creasing Machine 210times/Min

US$40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PY-950
Type
Industrial Cutter
Blade Material
Metal
Computerized
Computerized
Cut Precisions
0.10mm
Speed
90-140per/Min
Max Paper Size
950*550mm
Max Paper Feeding Width
970mm
Paper Weight
100-600GSM
Power
11kw
Max Die-Cutting Pressure
300t
Overall Dimensions
4100*2000*1850mm
Weight
7.5t
Transport Package
Wooden Box
Specification
ISO, CE
Trademark
DAKIOU
Origin
Zhengjia
HS Code
844110000
Production Capacity
50set/Month

Product Description

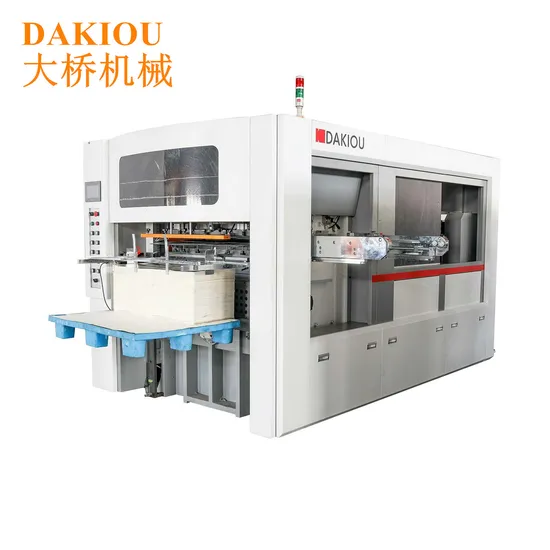

Roll paper die-cutting machine
Description:
PY-950 is an ideal and professional machine in die-cutting creasing and embossing various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup, paper box, medical package, wine package, food package and other environmental protection products. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, , overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.
Technical Specification
Type PY-950 PY-1200
Cut Precision: ± 0.10mm
Production capacity 150-210times/min
Maximum cutting size: 950 X540mm 1200*640mm
Suitable Material: 100-800G/M2 PE coated paper corrugating paper plastic material
Maximum Pressure: 350T
Total Power: 14KW
Total Weight: 6.3T 8.4T
Overall Dimension: 4200 X 2100 X 1850 mm
Working Air Source: Air pressure 0.5-0.7MPa (Need to buy compressor)

FAQ:
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with ten years of exporting experience by own trading company

2.Q:Where is your factory? How can I get there?
A:Our factory is located in wenzhou City, Zhejiang Province. It takes about one and a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou international airport first, and then we can send a car to pick up you.

3.Q:Can your products be customized?
A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM orders are highly welcome.

4.Q . how's the delivery time ?
A. Usually it will take about 3-4 weeks for production,all of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden case
