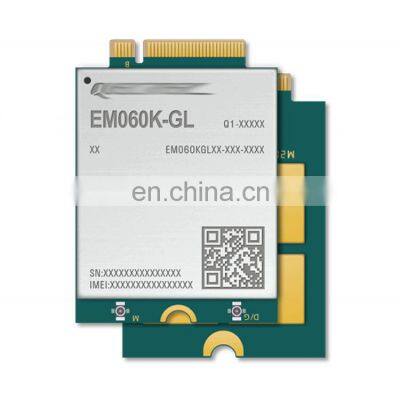

LTE-A EM060K-GL LTE Cat 6 module M.2 package key-B EM060K

Product Description

Product Description
DescriptionLTE-A EM060K-GL● LTE Cat 6 module● 42.0mm × 30.0mm × 2.3mm● Max. data rates of 300Mbps downlink / 50Mbps uplink● M.2 package, key-B● Extended temperature range of -40°C to +85°CKey Features● LTE-A Cat 6 module with M.2 form factor● Support DL 2 Carrier Aggregation and 64QAM● Worldwide LTE-A and UMTS/HSPA+ coverage● Built-in eSIM (optional), DSSA● Low power mode● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment● MIMO technology meets demands for data rate and link reliability in modem wireless communication systemsOverview● The EM060K-GL is an LTE-A Cat 6 module with an M.2 form factor measuring 42.0mm × 30.0mm × 2.3mm, developed in accordance with the 3GPP Release 12 specification, which supports a theoretical downlink peak data rate of 300Mbps and a theoretical uplink peak data rate of 50Mbps. The module is compatible with Quectei's LTE-A Cat 6 module EM06, Cat 12 modules EM12-G/EM121R-GL/EM120R-GL，Cat 16 module EM160R-GL and 5G modules RM500Q/RM502Q Series, which enables migration between different modules.● The EM060K-GL is designed for the global market and covers nearly all mainstream carriers worldwide. The module supports Qualcomm® IZat™ location technology gpsOne 9HT (GPS, GLONASS, BeiDou/Compass and Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.● A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows, Linux, Android/optional built-in eSIM) allow the module to serve a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
