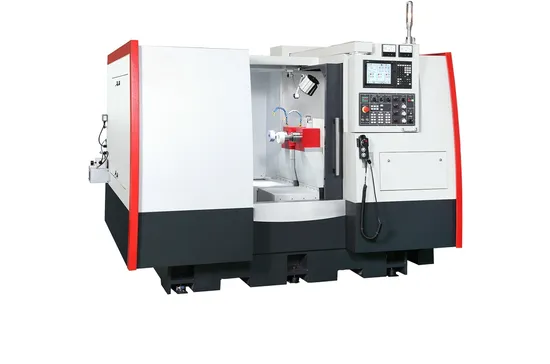

High Precision Internal and External Cylindrical Grinder for Grinding Surface Grinder Universal Grinder
| US$1,500.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1
Type
Tool Grinding Machine
Processing Object
Curve
Abrasives
Abrasive Belt
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, RoHS
Condition
New
Model No.
Ug-320h*1000
Color
According to Customers′ Require
Max. Grinding Length of Workpiece
1000mm(O.D)
Max. Workpiece Weight
150kg
Workhead Speed
25-220rpm(50Hz) Stepless
Machine Weight
3700kg
Max. Grinding Diameter of Workpiece
320mm
Internal Grinding Diameter
30-100mm
Wheel Peripheral Velocity
35m/S
Total Power
9kw
Machine Dimensions
3605*1810*1515mm
Transport Package
Wooden Packages
Specification
1
Trademark
DX Blast
Origin
China
Product Description
PRODUCT DESCRIPTION There are many different of finishing processes that are valuable in the production of small metal parts. Typically deployed at the end of manufacturing, these processes include methods of high precision internal grinding.Convenient grinding operation
All the grinding motions, "from rough grinding, dressing, finish grinding to spark out", are fully automatically operated. This provides high accuracy, convenient operation and greatly upgrades productivity. Also, it is excellent for mass production as well as small quantity, flexible workplace grinding.
The precision workhead spindleThe workhead spindle runs on a high precision roller bearing featuring high accuracy, high rigidity and silent running. The workhead can be swiveled at clockwise 7° ~anticlockwise 8°, allowing for grinding tapered workpleces.
The slide tableThe slide reciprocating movement is driven by a hydraulic system, providing variable speed change and superior stability.
NC controlled auto. dressing with compensationIn case a diamond or CBN grinding wheel is applied, a selection of no dressing compensation is available. For hard-to-grind parts, a multiple dressing compensation mode can be selected to ensure the desired grinding quality.
| SPECIFICATIONS | ||
| Centre Height | mm | 180 / 240 |
| Max Grinding Diameter (bore) | mm | 100 / 200 |
| Table Speed infintely variable | m/min | 0.1 - 4 |
| Max. Table Stroke | mm | 250 / 500 |
| Internal Grinding Spindle Dia | mm | 60 / 80 / 100 |
| Spindle Speed | rpm | 18000 / 28000 / 12500 |
| Grinding Wheel Motor Power | hp | 3 / 5 |
| Work Head Speed (stepless) | rpm | 20 - 650 |
| Work Head Swivel | deg | 0 to 30 |
| Rapid Approach / Auto Retraction | mm | 3 - 10 variable* |
| Auto Spark off time | sec | 0 - 60* |
