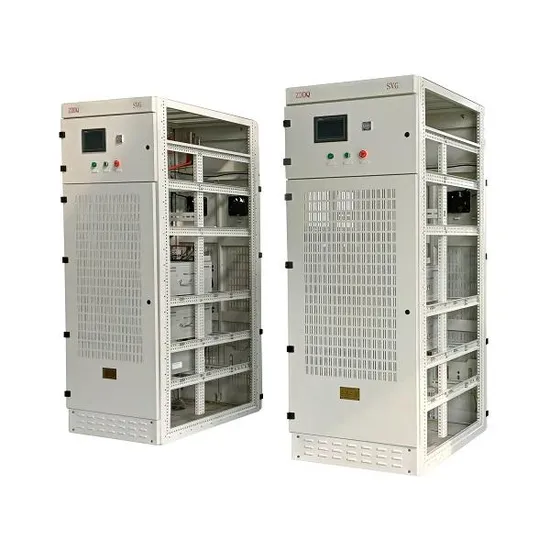

Svg Static Var Generator Power Factor Correction Panel Board Device

Svg Static Var Generator Power Factor Correction Panel Board Device

US$1,000.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SVG
Packaging Type
Customizable
Capacitance
Customizable
Structure
Customizable
Manufacturing Material
Customizable
Electrolyte
Customizable
Usage
Low Frequency Coupling, High Frequency Coupling, Filter, Low Frequency Bypass, High Frequency Bypass
Tuning
Customizable
Filter
Customizable
Transport Package
Wooden Case
Specification
According to technical drawing
Trademark
ville
Origin
China
HS Code
85
Production Capacity
5000

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
10000.000kg

Product Description

Model Number ZD-APF/SVG
Product Name Static Var Generator SVG
Rated Voltage low voltage
Rated Frequency 50Hz/60Hz
Power factor effect ≥0.98
Phase 3 phase 4 wire
Rated Capacity 30~1000kvar
Response time <5ms
Altitude 1000m
Certificate ISO9001,IEC
Key Words SVG static var generator
Packaging and delivery Packaging Details durable wooden case with pallet for svg
We insists on customers' demand as the guide, with the technology innovation as the drive, through 20 years technology accumulation, has already owned a series of power quality products including: Low voltage Active Power Filter APF Low voltage Static Var Generator SVG Medium voltage STATCOM Low voltage Capacitor Banks Medium voltage Capacitor Banks Which are widely used in many countries and industries such as power grid, hospital, sewage plant, railway, subway, airport, seaport, oil and chemical industry, metallurgy, coal mine, tele-communication and high buildings. Our products has been installed in Australia, EU, Asia, South America and Africa.
Products Description Static Var Generator/SVG/STATCOM Static var generator/SVG/STATCOM is the new standard in reactive energy compensation. This power electronic current source is the accurate and highly reliable solution for today's networks characterised by significant increase in harmonics, voltage variations caused by intermittent renewable sources connected to the network and voltage level due to the smart grid development. The DSP controlled IGBT topology enables a perfect compensation on each phase for both inductive and capacitive loads. It also correct phase unbalance where necessary. Immune to harmonics, resonance and voltage level, it offers a maintenance free solution reusable in any network configuration. Rack mount type SVG module
Interface of SVG Module
SVG Principle Static var generator/SVG/STATCOM (SVG for short), based on voltage type inverter principle, uses the isolated gate binary transistor (IGBT) to control the value and phase of AC voltage of inverter, so as to serve the purpose of reactive and harmonic compensation. As the switching frequency of IGBT is very high (dozens of kHz), SVG can realize fast compensation for reactive load, and achieve very high compensation precision. SVG is currently the best solution in reactive power control filed. Compared with the traditional SVC represented by TSC, the regulation speed of SVG is faster (the response speed is within 5ms), its compensation precision is high (the power factor after compensation is over 0.99), the compensation method is flexible (SVG can compensate both inductive reactive power and capacitive reactive power), and SVG also has the function of active filtration of harmonic current. Specification

Electrical properties
Rated voltage 220/400V/600VAC
Operating frequency 50Hz/60Hz
Electrical connection Three-phase Four-wire
Capacity of whole cabinet 30~1000kvar
Compensation mode Stepless compensate both inductive and capacitive power
Compensation effect ≥0.99
SVG module response time <5ms
Active loss of system <3%
Number of units connected in parallel ≤10 units
MTBT >100,000 hours

Control characteristics
Controller DSP+FPGA
Switching frequency 12.8K
Capacitor control interface 14 ways
Communication mode Adopt Modbus remote
Control connection Fiber or electrical

Structural characteristics
Weight Refer to the model
Level of protection IP20
Cooling method Air cooling
Noise <50db
Installation method Cabinet mounting

Environmental requirements
Ambient temperature -20~55ºC
Relative humidity Maximum 95%, without
Altitude above sea level ≤2,000m
Main Function Multifunctional: Reactive power and imbalance compensation Excellent reactive compensation: High speed, Precise (-0.99≤Cosφ≤0.99), Step-less, Bi-directional (capacitive and inductive) compensation Excellent imbalance correction: Both negative and zero sequence, mitigates neutral current Wide input voltage & frequency range, adapts to tough electrical environment Low thermal loss (≤3% of rated SVG capacity), efficiency ≥ 97% High stability: Infinite impedance to grid, avoids harmonic resonance problem Flexible application: Modular design, embedded in standard or customized cabinet Easy installation and maintenance: Easy installation for SVG module replacement and expansion Wide capacity range: 50kvar~600kvar for a single cabinet, up to 10 cabinets in parallel Environmental adaptability: -10~50°C temperature, compatible with diesel generators Complete protection: Grid over/under voltage, SVG over current, over temperature, and others. All faults recorded inevent log, convenient for failure analysis.
Applied Type Connection Type Model Rated Voltage Rated Capacity
SVG Module Three-phase four-wire ZD-SVGM/35-4-4L-R 208V
400V
690V
35kvar
ZD-SVGM/50-4-4L-R 208V
400V
690V
50kvar
ZD-SVGM/75-4-4L-R 208V
400V
690V
75kvar
ZD-SVGM/100-4-4L-R 208V 400V 690V 100kvar
