SIMCOM Wireless SIM7500E 4G LTE Module, SIM7500A SIM7500SA SIM7500 MPCIe Module

Product Description

Product Description

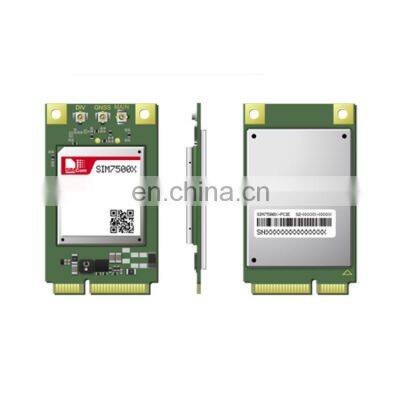

DescriptionSIM7500-PCIE SeriesThe SIM7500-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.The SIM7500-PCIE series adopts mini PCIE form factor and consists of a SIM7500 series module and a mini PCIE adapter board. It is easy for customers to integrate.The SIM7500-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7600/SIM7600-H series modules. Meanwhile the SIM7500-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.Product Advantages• Mini-PCIE interface with strong compatibility• Suitable for LTE, UMTS and GSM networks with global coverage• Abundant software functions: FOTA, LBS, TLS, VoLTE• Multi-constellation GNSS receiver support• AT commands of the SIM7500-PCIE series are compatible with the SIM7600/SIM7600-H series modulesSIM7500ASIM7500ADSIM7500VSIM7500SASIM7500ESIM7500JCSIM7500JEForm FactorMini PCIEMini PCIEMini PCIEMini PCIEMini PCIEMini PCIEMini PCIEDimensions(mm)50.8*30*5.3550.8*30*5.3550.8*30*5.3550.8*30*5.3550.8*30*5.3550.8*30*5.3550.8*30*5.35Frequency BandsLTE-FDDB2/B4/B12B2/B4/B12B4/B13B1/B3/B5/B7/B8/B28B1/B3/B7/B8/B20B1/B18/B19/B26B1/B3/B8WCDMAB2/B5B2/B5B1/B5B1/B8900/1800MHzGNSSoooooooTemperature-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃Electrical FeaturesSupply Voltage(V)3.0~ 3.63.0~ 3.63.0~ 3.63.0~ 3.63.4~ 4.23.4~ 4.23.4~ 4.2Power Consumption(mA)LTE1.61.61.61.61.61.61.6WCDMA,DRX=93.33.33.33.33.3GSM, BS_PA_MFRMS=22.8Data TransferLTE(Mbps)10(DL)/5(UL)10(DL)/5(UL)10(DL)/5(UL)10(DL)/5(UL)10(DL)/5(UL)10(DL)/5(UL)10(DL)/5(UL)HSPA+(Mbps)42(DL)/5.76(UL)42(DL)/5.76(UL)42(DL)/5.76(UL)42(DL)/5.76(UL)WCDMA(Kbps)384(DL)/384(UL)384(DL)/384(UL)384(DL)/384(UL)384(DL)/384(UL)GPRS/EDGE(Kbps)236.8(DL)/236.8(UL)Software FeaturesProtocolTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNSTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNSTLS●●●●●●●File System●●●●●●●Audio Record/PlayooooooTTSooooooDTMFooooooLBS●●●●●●●FOTA●●●●●●●Jamming Detection●●●●●●●Android RILAndroid 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0Android 5.0/6.0/7.0/8.0/9.0USB DriverMicrosoft Windows7/8/10Linux/AndroidMicrosoft Windows7/8/10Linux/AndroidMicrosoft Windows7/8/10Linux/AndroidMicrosoft Windows7/8/10Linux/AndroidMicrosoft Windows7/8/10Linux/AndroidMicrosoft Windows7/8/10Linux/AndroidMicrosoft Windows7/8/10Linux/AndroidWWAN (RNDIS)●●●●●●●ECM●●●●●●●MBIMWin8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10Win8/Win10NDISLinux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Linux/Windows 7/8/10Firmware UpgradeUSB/FOTAUSB/FOTAUSB/FOTAUSBUSB/FOTAUSB/FOTAUSB/FOTAInterfacesSIM Card1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0V1.8V/3.0VUART●●●●●●●USB●●●●●●●PCMooooooAnalog AudioooooooEmbedded SIM card socketoooooooI2C●●●●●●●Diversity Receiver●●●●●●●CertificationRegulatoryFCC/IC/PTCRB/RoHS/REACHFCC/PTCRB/RoHS/REACHFCC/GCF/RoHS/REACHCE-RED/ACMA/NCC/RoHS/REACHCE-RED/ACMA/NCC/RoHS/REACHTelec/JATE/RoHS/REACHTelec/JATE/RoHS/REACHCarrierAT&T/RogersT-MobileVerizonDeutsche TelekomSoftbank●: support o: optional * : on goingWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
