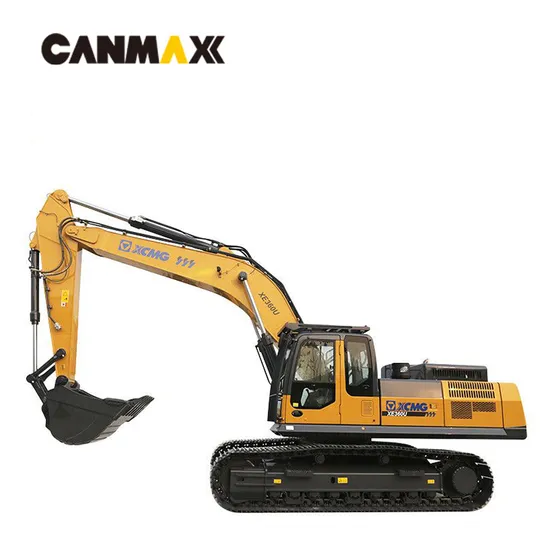

Xe360u Factory Excavator Xuzhou 30 Ton Xe360u Hydraulic Crawler Excavator with CE for Sale

Product Description

Product Description
Earthmoving Machinery china 36 ton crawler excavator XE360U for sale

1. High-pressure common rail EFI engine that meets North American EPA Tier4F emissions achieves optimal fuel injection control, improves combustion efficiency, and is more energy efficient and environmentally friendly.

2. Equipped with a new large diameter multi-way control valve, hydraulic system is quick and efficient;Valve element is further optimized to reduce internal pressure loss of the channel, improve maneuverability and efficiency of the composite operation.

3. Intelligent electronic control system can achieve optimal matching control of engine speed and hydraulic pump, and dynamic balance of power and hydraulic system. With remote fault diagnosis function, operation process will be recorded at any time.

4. High-performance silicone oil shock absorber with internal damping spring will effectively isolate shock waves in specific frequency bands for improved comfort.
Detailed Photos



After Sales Service

we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.

Product Parameters

Sales model		XE360U
Operating weight		36800
Bucket capacity		1.6
Engine	Model	QSL9
	Direct injection	√
	Four strokes	√
	Water cooling	√
	Turbo-charging	√
	No. of cylinders	6
	Rated power	213/2000
	Maximum torque/speed	1400/1451
	Displacement	8.9
Main performance	Travel speed	5.4/3.2
	Swing speed	9.7
	Gradeability	35
	Ground pressure	66.7
	Bucket digging force	263
	Arm digging force	183
	Maximum tractive force	285
Hydraulic system	Rated flow of main pump	2×300
	Main safety valve pressure	34.3/37.3
	Travel system pressure	34.3
	Swing system pressure	26.5
	Pilot system pressure	3.9
Oil Capacity	Fuel tank capacity	660
	Hydraulic tank capacity	350
	Engine oil capacity	30
Appearance size	Overall length	11388
	Overall width	3390
	Overall height	3570
	Width of platform	3200
	Track length	5035
	Overall width of chassis	3390
	Track width	800
	Wheel base of crawler	4040
	Track gauge	2590
	Counterweight clearance	1197
	Min. ground clearance	500
	Min. tail swing radius	3700
	Track height	1115
Working scope	Max. digging height	10445
	Max. dumping height	7287
	Max. digging depth	7423
	Maximum depth cut for 2240mm(8 ft) level bottom	7266
	Max. vertical wall digging depth	6776
	Max. digging radius	11114
	Min. swing radius	4369
Standard	Length of boom	6400
	Length of arm	3200
	Bucket capacity	1.6
Optional	Length of boom	6200
	Length of arm	2670
	Bucket capacity	1.8 Earthwork bucket (Equipped with 2.67 meters arm) 1.4 Rock bucket

FAQ
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5:What spare parts can you supply?
All kinds of spare parts of xcmg,shantui,zoomlion,sinotruck,shacman,liugong,sany,sdlg,lonking,xgma,etc.
