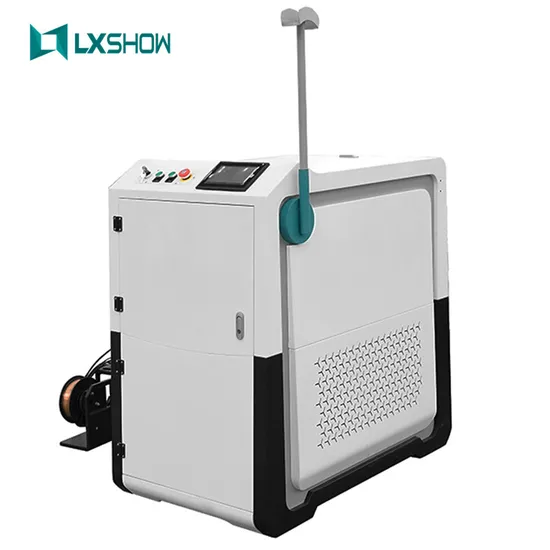

7% Price off CNC Laser Metal Welding Machine for Stainless Steel Aluminum

Product Description

Character:
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and themelting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily
maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the
appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Technology Parameter:

Laser power	LXW-500/750/800/1000W
Center wavelength	1070+-5nm
Output power stability	<2%
Laser frequency	50Hz-5KHz
Adjustable power range	5-95%
Beam quality	1.1
Optimal operating environment	Temperature 10-35 ° C, humidity 20% -80%
Electricity demand	AC220V
Output fiber length	5/10/15m (Optional)
Cooling method	Water Cooling
Dimensions	93*60*88cm
Weight	200kg
Cooling water temperature	20-25 ° C
Average consumed power	2000/4000W
Pulse Width	0.1-50MS
Focal Spot Diameter	0.2-3.0mm
Laser type	Nd:YAG
Wavelength	1064nm
Warranty	2 Years
Product name	Fiber laser welding machine

Application:
This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metaland its alloy material, can achieve the same precision welding between metal and dissimilar metals, hasbeen widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electricalproducts, automotive and other industries.
Samples:

Company Information: Jinan Lingxiu Laseris established in July 2004 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc, more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
Offline Event
Customer Visit
FAQ:
Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2:2 I don't know which one is suitable for me ?
A2:Please tell me
1) Your materials.
2) The thickness of your materials.
3) Size of welding line.
Q3:Payment terms?
A3:TT/West Union/Payple/LC/Cash and so on.
Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5:I don't know how to use after i receive or i have problem during use,how to do?
A5:1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual.
update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge.The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
