Product Description

Product Overview

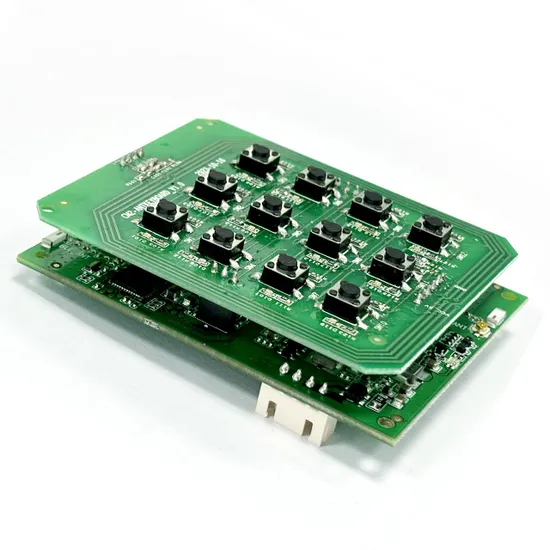

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low batteryoperated power consumption design, which contain the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications. Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application. Thanks to the latest technologies, it meet the Ultra-low power consumption requirement. Smart CM3 powerful platform is highly recommended for both hardware and software customization.
Product Features

Advantages
Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
Support Arm® TrustZone® for high security
Rich I/O port for electric lock control
With memory for local data storage
Economic solution for battery powered ultra-low power consumption reader
Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
Embedded software development
With Body detection function
Specifications

Memory	4M BYTE
Power Supply	- USB - 3V / 4 * battery
RFID ISO Standard & Cards	13.56MHz ISO14443A, ISO15693 and ISO18092 standard - Mifare Classic CSN & Sector - DESfire EV1/EV2/EV3(2k/4k/8k) CSN & Sector - Ultralight/Ultralight C CSN & Sector - Mifare plus S,X CSN & Sector - NFC tag - HID iCLASS CSN
Secure Interface	- Optional SAM slot ISO7816 T=0, T=1; - Support SAM AV2 for 13.56MHz read/write EAL5+ encryption - Secure IC for MCU communication protection EAL5+ Level
Mobile Phone Communication	- NFC mobile phone - BLE 5.3
Mechanical Keypad	12 digit keypad
Communication Interfaces	- WiFi - BLE 5.3 (Master & Slave mode, Beacon, Thread, Zigbee, Mesh) - USB
Indicators	Buzzer and Bio-color LED
Input/Output	GPI/O * 8
Operating Temperature	-20ºC~60ºC
Configuration Methods	Configuration card, reader tool software or factory configured readers.
