Geming Stationary 1 Mobile Scissor Lift Linear Actuator Lifting Columns,

Geming Stationary 1 Mobile Scissor Lift Linear Actuator Lifting Columns,

US$115.00 1 Set (MOQ)

Basic Info.

Model NO.
HTA3
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
DC
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, RoHS
Maximum Load
6000n
Maximum Speed
5-100mm/S
Installation Dimensions
Stroke +200mm
Temperature
-45-+75
Transport Package
1
Specification
100*100
Trademark
GeMinG
Origin
Wenzhou, Zhejiang
Production Capacity
500

Product Description

Product Features
HTA3 is one of the lifting column products developed by GeMinG. It is specially suitable for medical and working environments, such as hospital beds, home care beds, diagnosis and treatment tables and height-adjustable working methods. HTA3 uses a three-section outer tube to provide stable movement, and can provide the smallest installation size and longer stroke options.!
Model Selection
• Model Selection
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
• Drawing Request
If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.

• On Your Need
We can modify standard products or customize them to meet your specific needs.

Detailed Photos
Product Description
Functional Overview
Voltage: 12,24,48V DC, 220V AC
Motor options: DC servo motor, AC servo motor
Maximum thrust (pull force): 6,000N / 4,000N
Maximum speed under load: 5-100 mm / s
Minimum installation size: Stroke /2 + 200mm
Dynamic lateral moment: 1,000Nm
Static lateral moment: 1,800Nm
color: Aluminum color. silver gray
Voice: 48~52 DB
Adaptable temperature range: -35 ° C ~ + 75 ° C
Screw selection: Ball screw, trapezoidal screw
signal type: Built-in limit signal,
Control options: CAN bus control,
safety certificate: Comply with ISO9001-2008, CE and RoHS specifications,

Engineering drawings
Load and speed
Code Rated load
thrustN
pull
N
Self-locking force static
N
Rated load
A
Output speed no-load
24V DC
MM/S
Rated load
24V DC
MM/S
Motor voltage(24V DC)
A 7,000 4,000 8,000 6.2 4 3
B 5,000 4,000 7,000 6.2 7 6
C 3,500 3,000 6,000 6.2 11 9
D 2,800 2,800 4,500 6.2 14 11
E 1,400 1,400 3,500 6.2 28 23
F 1,000 1,000 3,500 6.2 38 30
G 700 700 3,000 6.2 57 46
H 500 500 3,000 6.2 76 61
I 350 350 3,000 6.2 110 92

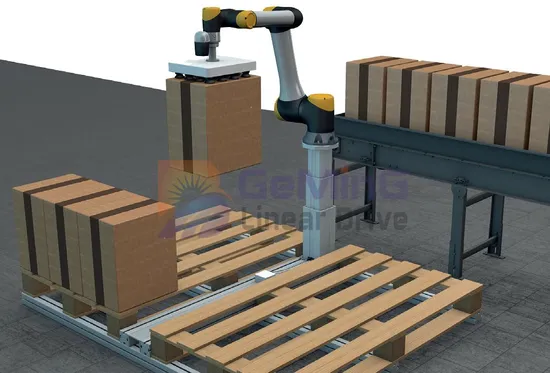

Applications

Company Profile
GeMinG was founded in 2011 and is located in Binhai Economic Development Zone, Wenzhou City, Zhejiang Province, 5minutes away from Wenzhou Airport. The company specializes in R&D and manufacturing linear motion systems and has become a leading manufacturer of electric linear actuators, electric lifting column control systems and related technologies. GeMinG currently has two branches, two manufacturing plants and multiple sales agents, which can provide global engineering and sales support.
The personal relationships gained through cooperation also strengthen the relationship of the GeMinG family, which is a multinational team working together to achieve the common goal of providing high-quality, long-life linear motion solutions and best customer service to our partners. We celebrate wins and learn from team challenges. We use challenges as a way to learn and achieve greatness. We are the GeMinG team.
Q: What are your main products?
A: We currently produce lifting columns, medical lifting columns, furniture lifting columns, ergonomic lifting tables, linear actuators, industrial linear actuators, micro actuators, six-axis robotic arms, etc. You can check the above product specifications on our website, or you can recommend lifting mechanisms and actuators that meet your specifications to us by email.
Q: How to choose a suitable lifting mechanism?
A: If you have pictures or drawings of lifting columns to show us, or you have detailed specifications such as voltage, speed, stroke, initial height, maximum height, motor working mode, required life and noise level, etc., please feel free to tell us, then we can recommend a suitable lifting mechanism according to your requirements.
Q: How to choose a suitable linear actuator?
A: If you have pictures or drawings of linear actuators to show us, or you have detailed specifications such as voltage, speed, stroke, installation size, load capacity, required life and noise level, etc., please feel free to tell us, then we can recommend a suitable lifting mechanism according to your requirements.
Q: Do you have customized services for your standards?
A: Yes, we can customize the product requirements according to your requirements, such as installation size/shape, motor selection, stroke, voltage, and various special requirements. We can do everything to meet your needs.
Q: Do you have personalized design services for products?
A: Yes, we are willing to design actuators and lifting mechanisms, as well as control systems, etc. for customers, but there may be some mold development costs. Simple customization does not require any fees.
Q: How long is your delivery time?
A: Generally speaking, our regular standard products take 6-20 days, and customized products take longer. But we are very flexible about delivery time, which depends on the specific order.
If you have detailed requirements, please contact us, thank you!
