Precision CNC Gantry Milling Machine for Non-Metallic Materials

Product Description

XKS1600X2500
Product Description

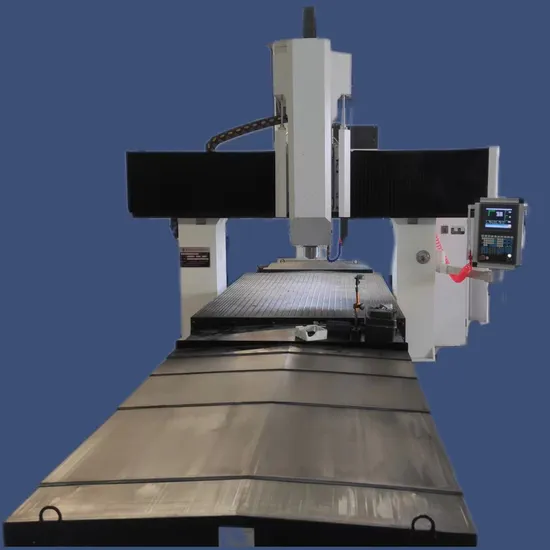

XKS1600X2500 CNC gantry milling machine, used for processing non-metallic materials such as aluminum profiles and nylon. Detailed instructions are as follows:
1, Machine tool structure description:
The main body of the XKS1600X2500 CNC gantry milling machine adopts a high-strength resin sand casting structure, which is rigid and does not deform after aging treatment. The gantry span of the machine tool is 1770, and the maximum workpiece that can pass through is 1770. The workbench is made of high-strength cast iron material, with an effective area of 1600X2500, and the machining range of the machine tool is large.
The X-axis of the machine tool guide adopts Taiwan's high-precision linear rolling guide, with a high rated load, low friction coefficient, no crawling at low speeds, and fast starting at high speeds. The Z-axis is equipped with a cylinder balance device.
The three-axis transmission adopts Taiwan's precision ball screw and uses specialized bearings for precision screw, with high axial tension and good accuracy maintenance. X. The Y-axis motor and screw are directly connected for smooth operation and low noise.
The spindle is driven by a servo motor. The spindle is a Taiwanese mechanical spindle with a sleeve structure installation, good rigidity, and high rotation accuracy. The machine tool is equipped with an automatic cutting device.
The CNC system adopts Taiwan's new generation of highly intelligent system, which realizes three-axis linkage and can complete milling processing of straight, oblique, and curved contours. The driving motors are all AC servo motors.
The CNC control console is a single unit operation with an electronic handwheel for easy tool alignment and flexible operation.
The machine tool is equipped with intermittent automatic lubrication, a volumetric oil separator, and a quantitative oil supply to ensure sufficient and reliable lubrication.
Install guide rail protective covers on the x and y guide rails of the machine tool to prevent dust and debris, and extend the service life of the guide rails.
10: The workbench is a vacuum specific adsorption platform, which facilitates the processing of thin plate workpieces. The vacuum pump is selected from high-quality domestic brands, with forced air cooling, making it easy to use.
11: Configure automatic power-off function. After the machining program stops, the power supply of the machine tool can be automatically cut off.
12: Configure automatic air cooling device, which can be controlled by M code.
13: The electrical control cabinet is equipped with isolation transformers to effectively protect all electrical components of the cabinet.
14: The second party shall provide the first party with free installation and debugging of the machine tool.
15: The electrical system adopts advanced design concepts and techniques, widely using modern design methods and tools such as CAD, making the machine tool reliable in performance, easy to operate, and easy to control.
Use range
Equipment usage
This equipment is mainly used for milling, boring, and drilling complex shaped large plates such as non-metallic carving processing and insulation boards in the electrical industry. It has a reliable structure, high degree of automation, simple operation, and high production efficiency.
The machine tool consists of a bed body, worktable, column, crossbeam, support plate, and spindle box. All castings are made of high-strength cast iron molded with resin sand, which has good rigidity and strong stability. They have undergone secondary aging treatment such as thermal aging and vibration aging to fully eliminate the internal stress of the castings.

Product Parameters

item			main parameter
machine range	X x axis travel	mm	2700
	Y y axis travel	mm	1750
	Z Z axis travel	mm	500
	Longmen span	mm	1750
	Distance from spindle end face to worktable	mm	100mm-600mm
worktable	Table size	mm	1600X2500
spindle	Drive mode		Timing belt
	Spindle speed	rpm	10000
	Main motor power	kW	7.5KW
	taper hole	mm	40
	Spindle taper bit		BT40-150
Feed speed	X. Y, Z fast moving speed	m/min	12/12/6
	X. Y, Z servo motor power	kW	4.4kw/3.5KW/3.5kW
	X. Y, Z servo motor torque x reduction ratio	N	27NM/15NM/15NM
	X. Y, Z servo motor speed	rpm	2000/2000/2000
	X. Y-axis and Z-axis lead screw diameter Taiwan TBI	mm	Φ50/Φ40/Φ40
	X. Y-axis and Z-axis guide rails in Taiwan	mm	45/45/45
Machine weight		T	9.5
