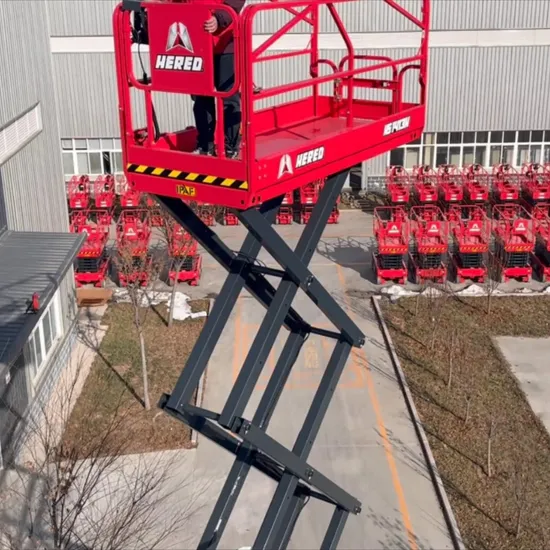

Factory Price CE High Quality Self-Propelled Hydraulic Scissor Lift 14m 250kg Construction Aerial Work Platform for Cleaning
| US$10,700.00-11,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HS1413H
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001, ANSI
Platform Capacity
250kg
Extension Capacity
113kg
Gradeability
0.25
Tires (mm)
381mmx127mm
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
2.84m x 1.25m x 2.62m
Trademark
HERED
Origin
China
HS Code
8428909090
Production Capacity
20, 000 Units / Year
Packaging & Delivery
Package Size
284.00cm * 125.00cm * 262.00cm
Package Gross Weight
3530.000kg
Product Description
Online consultation to get the lowest price1. Optimized matching, high cycle times, better endurance.
2. Precise control greatly improves the smoothness of operating.
3. Large ground clearance, stronger passability
| MODEL | HS1413H |
| Max. Working Height(In/out) | 15.7m/10m |
| A-Max. Platform Height(In/out) | 13.7m/8m |
| B-Platform Length | 2.64m |
| C-Platform Width | 1.12m |
| Extension Size | 0.9m |
| D-Heights (Rails Up) | 2.62m |
| Height (Rails Down) | 2.1m |
| E-Length (with Ladder) | 2.84m |
| F-Overall Width | 1.25m |
| G-Wheel Base | 2.22m |
| H-Clearance (Stowed) | 0.1m |
| I-Clearance (Raised) | 0.02m |
| PERFORMANCE | |
| Platform Capacity | 250kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 2/1 |
| Max.Drive Speed (Stowed) | 3.5km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Out.) | 2.3m |
| Up/Down Time | 80/60s |
| Gradeability | 0.25 |
| Max. Slope | 1.5°/3° |
| Control | Proportional |
| Drive | FWD |
| Multi Disc Brake | Rear |
| Tires (mm) | 381mmX127mm |
| Max.Wind Speed | 12.5m/s |
| POWER | |
| Batteries (V/Ah) | 24V/300Ah |
| Charger | 100-240VAC/10A |
| WEIGHT | |
| Weight | 3530kg |
