6/10/15/20kVA Single Phase UPS High Frequency Home UPS 4/5/8/12/16kw UPS Inverter Backup Power Online UPS for Industrial Equipment, Clean Power
| US$85.13-180.99 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XG6-20K
Protection
Short Circuit
Application
Industry
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Medium Type
Equipment Mode
Decentralized
Brand
Kemapower
Power
0.9kw-2.7kw
Display
LED
Wave Form
Pure Sine Wave
Transfer Time
0 Ms
Transport Package
Safety Packing
Specification
1KVA, 2KVA, 3KVA
Trademark
KEMAPOWER
Origin
China
HS Code
85044020
Production Capacity
600, 000PCS/Year
Packaging & Delivery
Package Size
360.00cm * 640.00cm * 760.00cm
Package Gross Weight
65.000kg
Product Description
High Frequency Online UPSXG6-20K(S) 6-20KVA, 4.8-16KW
KEY FEATURES LCD High frequency sine wave online UPS 6K/ 10K/ 15K/ 20KVA DSP digital control double conversion technology, Zero transfer time Single phase, output Power Factor 0.8/0.9, adjustable VAC and HZ by panel Wide input voltage and frequency range, support Generator Advanced Input PFC technology, 0.99 Self-testing, and battery management function Automatic battery charging while UPS off mode Lightning, surge, Short circuit and overload protection, Alarm or Silence settable RS232 or USB communication with monitoring software SNMP, EPO, MBS are optionalTECHNICAL SPECIFICATIONS
| Item | Model | XG6K | XG6KS | XG10K | XG10KS | XG15K | XG15KS | XG20K | XG20KS |
| Capacity | VA / Watts | 6KVA / 4.8KW | 6KVA / 4.8KW | 10KVA / 8KW | 10KVA / 8KW | 15KVA/12KW | 15KVA/12KW | 20KVA/16KW | 20KVA/16KW |
| Input | Normal Voltage | 220VAC | |||||||
| Turn On Voltage Range | (120±5~274±5)VAC | ||||||||
| Frequency Range | 40~60Hz+-0.2(adjustable) | ||||||||
| Input Power Factor | >0.99(220VAC,full R load) | ||||||||
| Generator | Support generator input(Generator rating≥2*UPS rating ) | ||||||||
| Line Low Loss/ComeBack | 220VAC:(120±5)VAC/(140±5)VAC when Load≤50% | ||||||||
| 220VAC:(150±5)VAC/(165±5)VAC when 50%< Load≤80% | |||||||||
| 220VAC:(160±5)VAC/(175±5)VAC when 80%< Load | |||||||||
| Output | Voltage Range | 200VAC/208VAC/220VAC/230VAC/240VAC, need to confirm before order(Could be adjusted by software,10% derating for 208VAC/200VAC) | |||||||
| Frequency Range | 40~60Hz+-0.2(adjustable) | ||||||||
| Wave Form | Pure Sine Wave | ||||||||
| Transfer Time | 0 ms, Between Line mode and Bat mode | ||||||||
| Transfer time: 4ms (typical 2.5ms), line Mode and bypass mode | |||||||||
| Voltage Distortion | ≤6%,Full RCD load | ||||||||
| Voltage Distortion | ≤2%,Full R load | ||||||||
| Overload Capacity | load≤105%±5%, warning only, 105%+-5%<Load≤125% +-5% ,1min ; 125%±5%<load≤135%±5% , 30S ; Load>135%±5%, 100MS | ||||||||
| Load Peak Ratio | 3:1(max) | ||||||||
| Battery | Battery Type | Maintenance free valve regulated lead acid (VRLA) battery | |||||||
| Battery Voltage | 192VDC or 240VDC | ||||||||
| Battery Capacity | 16*7A or 20*7AH, 9AH Option | External | 16*7A or 20*7AH, 9AH Option | External | 20*9AH, 7Ah option | External | 20*9AH, 7Ah option | External | |
| Recharge Time | 7 hours to 90% capacity | Depended on battery capacity | 7 hours to 90% capacity | Depended on battery capacity | 7 hours to 90% capacity | Depended on battery capacity | 7 hours to 90% capacity | Depended on battery capacity | |
| Charge Current | 1 or 2.5A | Normal 5Amp. Max 7Amp | 1 or 2.5A | Normal 5Amp. Max 7Amp | 1 or 2.5A | Normal 5Amp. Max 7Amp | 1 or 2.5A | Normal 5Amp. Max 7Amp | |
| Display | LED Display | Line , Inverter , Bypass, battery | |||||||
| LCD Display | LCD For input output HZ/VAC, Bat %/VDC, Load % and VA/Watts,Temp. Fault Code ,LED for line,bat, Inverter, Bypss,Fault | ||||||||
| Audible Alarm | Battery Mode | Beeping every 4 min (re-settable) | |||||||
| Overload | Beeping every 1 min | ||||||||
| Fault | Beeping Continuously | ||||||||
| Bettery Low/Charger Fault | Beeping every 1 min | ||||||||
| Bypass Mode | Beeping every 2 min | ||||||||
| L/N Inverse | Beeping every 2 min | ||||||||
| Communications | RS-232/USB Interface | RS232 or USB, With monitoring software | |||||||
| Working Environment | Surge Protection | RJ-45 I/O port available for network or Fax/Modem | |||||||
| Working Temperature | 0ºC~40ºC | ||||||||
| Humidity | 0-95% non-condensing | ||||||||
| Product size | WxDxH (mm) | 260*533*560 | 190*425*328 | 260*533*560 | 260*533*501 | 560*260*717 | 533*260*501 | 560*260*717 | 533*260*501 |
| Product Weight | Kg | 55/63(7AH) | 12.2 | 62/70(9AH) | 21 | 83(9AH) | 32 | 84(9AH) | 33 |
| PCS/CTN | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| CTN size | WxDxH (mm) | 360*640*760 | 295*565*445 | 360*640*760 | 395*690*650 | 705*430*960 | 640*360*760 | 705*430*960 | 640*360*760 |
| CTN Weight(G/W) | Kg | 65/73(7AH) | 14.3 | 72/80(9AH) | 24 | 92(9AH) | 35 | 96(9AH) | 36 |
| REMARK | XG*K --- Standard Type Internal battery, XG*KS---- Long backup Type,External battery | ||||||||

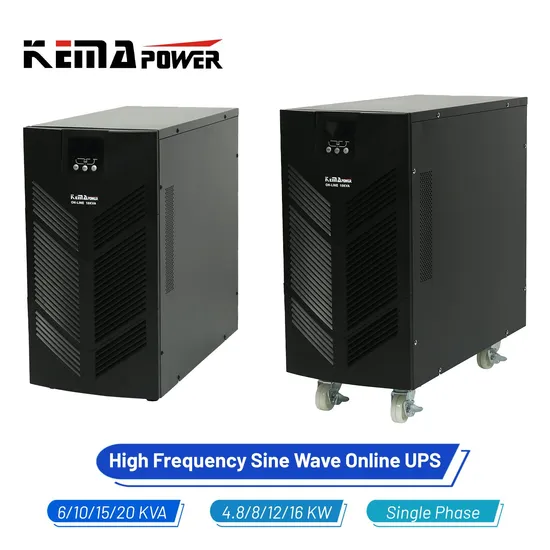

PRODUCT DISPLAY10KS/15KS/ 20KS - 260*533*501 mm
15K/ 20K - 560*260*717 mm Back side of 10K Back side of 10KS
