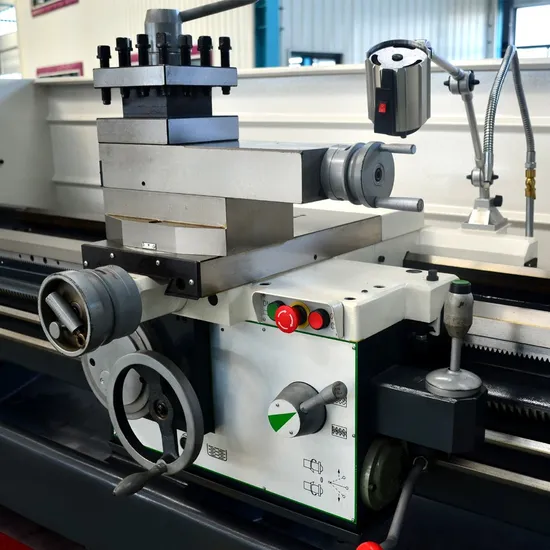

Best Quality Precision Metal Gap-Bed Engine Lathe C6266A Horizontal Metal Manual Lathe
| US$4,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6266A
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
660mm
Swing Over Cross Slide
440mm
Width of Bed
400mm
Spindle Bore
105mm
Spindle Taper
Mt5
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
LATHE MACHINE FEATURES:
Whole or segregate foot stand for optional
11KW(15HP)main motor for optional
SPECIFICATIONS:
| MACHINE TOOL TYPE | C6266(A) | CQ6280 |
| CAPACITY | ||
| Swing Over Slide | Φ660mm | 800 |
| Swing Over Cross Slide | Φ440mm | Φ570mm |
| Swing in Gap Diameter | Φ900mm | Φ1035mm |
| Length of Gap | 250mm | |
| Center Height | 330mm | |
| Distance Between Centers | 1500mm/2000mm/3000mm | |
| Width of Bed | 400mm | 400mm |
| Max. Section of Tool | 25mm × 25mm | |
| Max. Travel of Cross Slide | 368mm | 420mm |
| Max. Travel of Compound Rest | 230mm | 230mm |
| HEADSTOCK | ||
| Spindle Bore | Φ105mm | |
| Spindle Nose | D1-8 | |
| Taper of Spindle Bore | Φ113mm(1:20)/MT5 | |
| Spindle Speed Number | 16 | |
| Range of Spindle Speed | 25~1600rpm | 25~1600rpm |
| FEEDS AND THREADS | ||
| Leadscrew Pitch | Φ40mm×2T.P.I. or Φ40mm×12mm | |
| Inch Threads Range | 7/16~80T.P.I. (54 kinds) | |
| Metric Threads Range | 0.45~120mm (54 kinds) | |
| Diametrical Pitches Range | 7/8~160DP (42 kinds) | |
| Module Pitches Range | 0.25~60MP (46 kinds) | |
| Longitudinal Feeds Range in Metric Lead Screw | 0.044~1.48mm/rev (25 kinds) | |
| Longitudinal Feeds Range in Inch Lead Screw | 0.00165"~0.05497"/rev (25 kinds) | |
| Cross Feeds Range in Metric Lead Screw | 0.022~0.74mm/rev (25 kinds) | |
| Cross Feeds Range in Inch Lead Screw | 0.00083"~0.02774"/rev (25 kinds) | |
| TAILSTOCK | ||
| Quill travel | 235mm | |
| Quill diameter | Φ90mm | |
| Quill taper | MT5 | |
| MOTOR | ||
| Main motor power | 7.5kW(10HP) | |
| Coolant pump power | 0.09kW (1/8HP) | |
| DIMENSION AND WEIGHT | ||
| Overall Dimension (L×W×H) | 321/371/471cm×123cm×160cm | 321/371/471cm×123cm×167cm |
| Packing Size (L×W×H) | 324/374/474cm×114cm×184cm | 324/374/474cm×114cm×191cm |
| Net Weight | 3060/3345/3710kg | 3220/3505/3870kg |
| Gross Weight | 3535/3835/4310kg | 3705/4005/4480kg |
