Elegant Stylist Space-Saving Wallmount Touchscreen Kiosk with 19"-21 Portrait Display
Basic Info.
Model NO.
TSK2014WM
Finish of Enclosure
Paint or Powder Coat
Monitor
19"-21" TFT LCD Monitor
Touchscreen
IR Touchscreen
Mother Board
Industrial Mother Board
CPU
Intel Quad Core J1900 or Above
RAM
4GB/8GB
HDD
500GB or Above
Wireless
WiFi or 4G
Peripherals
Thermal Printer, IC Card Reader etc
Aspect Ratio
9:16
Certification
FCC, CE
Installation
Wall-Mounted
Touch Screen Type
Infrared
Screen Technology
LCD
Remote Control
With Remote Control
OS
Windows
Customized
Customized
Interface Type
VGA and HDMI
Screen Size
19-21 Inch
Application
Self-Service Terminal in Public Space
Type
Touchscreen Self-Service Terminal
Transport Package
Carton Enhanced with Ply-Wood Crate
Specification
Portrait display
Trademark
KINGLEADER or customer′s preference
Origin
Shenzhen, Guangdong, China
HS Code
84714190
Production Capacity
5000 PCS/Month
Product Description

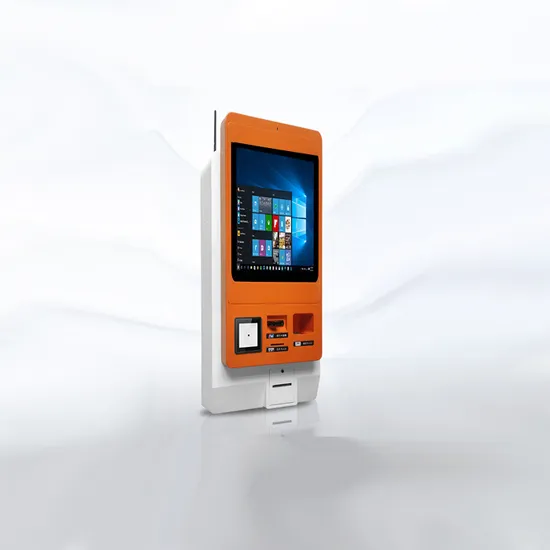

KINGLEADER's TSK2014WM, is a new, elegant, space -saving wallmount kiosk with a 19"~21" IR touchscreen and a portrait display.Due to its unique design,it is easy to integrate it with other peripherals(thermal printer,keypad,IC cardreader, NFC /RFID cardreader etc) based on the need of customers /end-users.
It is widely used in convenience store,drug store,coffee shop,restaurant or other places where information and/ortransaction are provided in self-service and interactive manner but floor space is at a premium.
| Items | Specifications |
| Key Feature | - 11" ~21" portrait screen(16:9) - High-sensitivity,high light-transmittance,anti-glare,vandal-proof Infra-red touchscreen - Durable steel enclosure,stylish and floor space-saving design - Built-in hi-fi amplified speakers - Easy to integrate it with other peripherals such as thermal printer,keypad,IC cardreader,NFC/RFID cardreader,QR code scanner etc - Typical pplications: convenience store,drug store,coffee shop,restaurant or other places where information and/or transaction are provided in self-service and interactive manner but floor space is at a premium. |
| LCD Display | - Resolution: 1920x1080 - Brightness: 500 nits - Contrast ratio: 1000:1 - Response time :5 ms |
| Touchscreen | - Vandal-proof IR touch screen - Material: Heat tempered glass - Resolution: 4096*4096 - Deviation of error: <2mm - Light Transmittance: ≥ 92% - Surface Hardness: 7 Mohs scale - Lifetime:50,000,000 times at one single location - Response time: less than 8 ms |
| Enclosure | - Durable steel enclosure (different colors for option) - Built-in power control panel, and hi-fi speakers. - Two cooling fans for computer board and main body separately - RJ45/RJ11 interface - Large access doors with tubular locks/keys |
| Computer | - Industrial mother board - CPU:Intel Celeron J1900 Quad-core 2.0G(or custom) - RAM: 4GB/8GB - Hard Disc: 500GB(or custom) - Integrated sound/network/graphics card - Interface: 8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45 - LAN port - WIFI(optional) |
| Compatible Operation System | -LINUX/Win3.X/98/2000/NT4.0/XP/Win7/8/10 |
| Working Voltage | -AC 220V,50 Hz or 110V,60 Hz for option |
| Ambient Environment | - WorkingTemperature -20ºC~65ºC;RelativeHumidity: 30%~90% - Storage Temperature: -40ºC~80ºC;Relative Humidity: 5%~95% |
| Certification | -CE,FCC |
| Dimension | Depended on the size of screen and peripherals to be integrated |
| Weight | Depended on the size of screen and peripherals to be integrated |
| Optional Peripherals | Thermal printer(58mm or 80mm),QR code scanner,IC card reader,NFC/RFID card reader etc |
