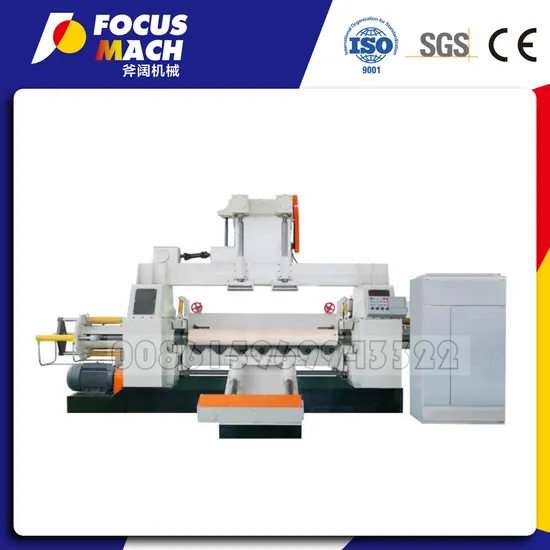

8feet Hydraulic Spindle Rotary Peeling Machine for Plywood
| US$6,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
FM-BXQ1626/17-1
Type
Rotary Peeling Machine
Automatic
Automatic
Certification
CE, ISO, SGS
Customized
Customized
Color
Customized
Weight
36000kgs
Max.Working Diameter
1600mm
Min. Working Diameter
170mm
Max. Working Length
2700mm
Veneer Thickness Range
0.35 - 4.2mm
Transport Package
Plastic Film, Wooden Box
Specification
10500 x 2600 x 42mm
Trademark
FOCUSMUCH
Origin
China
HS Code
8465960000
Production Capacity
100 Sets Per Month
Product Description
Product Description| Equipment characteristics: Face veneer is the important material for many wood-based panel products, including plywood, LVL, etc.. The face veneers are mostly made from expensive tree species with hundred years, so first of all is choosing one best spindle rotary peeling machine to get the best quality face veneer. The working line main process includes: Raw logs conveyor -> Hydraulic wood rounding debarker -> Hydraulic spindle rotary peeling machine -> NC veneer guillotine -> Veneer automatic stacker. |
Product Parameters
| Machine name | 8FEET Hydraulic spindle rotary peeling machine |
| Machine model | FM-BXQ1626/17-1 |
| Max.working diameter | Ø1600mm |
| Min. Working diameter | Ø170mm |
| Max. Working length | 2700mm |
| Veneer thickness range | 0.35 - 4.2mm |
| Diameter of chucks | Ø110mm(Small) Ø200mm(Big) |
| Chuck rotation speed | 0-200rpm/min |
| Main motor power | 118Kw |
| Fan motor power | 5.5Kw |
| Tool cartridge motor | 5.5Kw |
| Too cartridge motor | 1.8Kw |
| Tool cartridge rear angle motor | 1.1Kw |
| High voltage pump motor | 4.4Kw |
| Large displacement pump motor | 7.5Kw |
| Max. Operation pressure of hydraulic | 6Kw |
| Total motor power | 145.5Kw |
| Weight | 36000Kgs |
| Machine overall dimension | 10500 x 2600 x 42mm |
Detailed Photos
Our Advantages
Why Choose Us:
--------------------------
(1) lasering your logo on products and designing logo is free
(2) Delivery time within 30days
(3) No else charge
(4) MOQ≥1
(5) Provide products quotation
(6) Provide Packaging customization service
(7) SupportWechat / Email / whatsapp /
(8) We specializein this field for 30 years professional manufacturing experience and 10 years exporting experience
(9) Excellent after-sale system
(10) Supporting visits to factory
FAQ
01 Products are to be packed in wooden cases or cartons or...?Wooden package02 Production cycle of the product?20-30 days03 Different products should be different, can you give a general range?3-14 days or 7-30 days04 Production cycle of customized products?30-40days05 Product lead time is 3-7 days, 7-15 days for large quantities, or?? 20- 30days
