Kunwei China OEM 20ton Weight Force Sensor Load Cell

Product Description

Kunwei China OEM 20ton Weight Force Sensor Load Cell Product Description

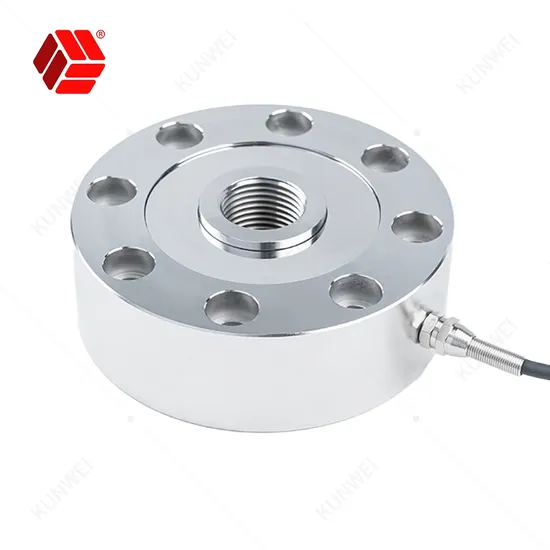

KWT1D156(cable gland) series load cell adopts spoke structure, it has advantages of big siffness, high precission and easy to use. It is suitable for harsh testing missions and test benches.
It has a rotational symmetric structure.
It is widely used for test benches, material testing and challenging test tasks.
It has minimum linear error and small lag. It also has excellent repeatable test precission and can meet the requirements of high measurement precission.
KWT1D156 series has high natural frequency, so it is suitable for fast process measurement(high dynamic application).
The load cell can be applied to all kinds of material testing machines, research and development tests.

Parameter	Unit	Model
		KWT1D156
Range	kN	100, 150, 200
Diameter	mm	156
Height	mm	53
Weight	kg	5
Sensitivity	mV/V	2.0±1%
Repeatability	%FS	≤±0.05
linearity	%FS	≤±0.05
Hysteresis	%FS	≤±0.05
Creep	%FS/30min	≤±0.03
Bridge Resistance	Ω	700±5
Output Resistance	Ω	700±5
Insulation Resistance	MΩ/100VDC	≥5000
Power Voltage	VDC	5~12
Temperature Compensation	ºC	0~60
Working Temperature	ºC	-10~80
Safety Overload	%FS	150
Limited Overload	%FS	200
Cable Size	mm	Φ6×3000
Material		High Strength Alloy Steel/Stainless Steel
Protection Level		IP68(Customization Acceptable)

How to choose a proper sensor?

Items
Measuring Items	F&T of 3 Directions	F or T of 3 Directions	F or T of 1 Direction
No. of Outputs	6	3	1
Point of F	Not Fixed	Fixed	Fixed
Direction of F	Not Fixed	Not Fixed	Fixed
Measuring Accuracy	High	High or Medium	High or Medium
Budget	High	Medium	Low
Recommendation	6 Axis F&T Sensor	3 Axis F/T Sensor	1 Axis F/T Sensor

Note:F stands for force,T stands for torque.

FAQ

1.How to place an order ?
Just provide us your application&requirement and we`ll help you confirm all the details.
2.What is lead time?
3-5 working days if we have in stock;7-30 working days for bulk order.
3. What is the MOQ?
1 pc for testing is available for all types.
4.Can you provide customized product?
Of course and we can provide whole set solutions for you.
5.What is after-sale service?
Our R&D team will solve all your problems all the way since you get our product.
