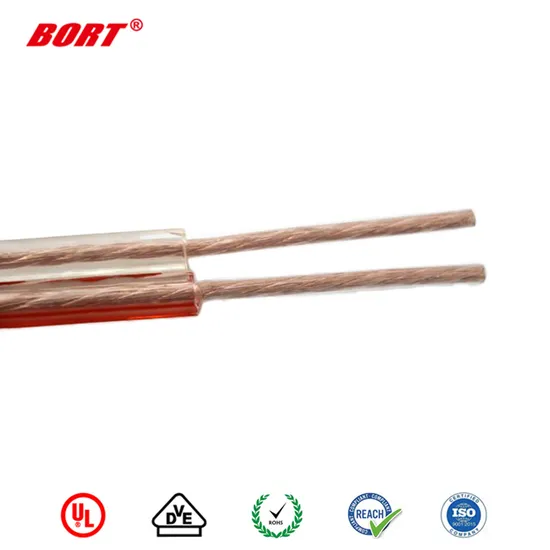

ISO9001 RoHS Compliant Transparent Two Core UL2468 Speaker Cable

Product Description

ISO9001 RoHS Compliant Transparent Two Core UL2468 Speaker Cable
★ Rated temperature:80ºC
★ Rated voltage:300V
★ According to:UL Subject758,UL1581,C22.2
★ Solid or stranded,tinned or bare copper conductor 32--16AWG
★ PVC insulation
★ Passes UL VW-1 FT1 vertical flame test
★ Uniform insulation thickness of wire to ensure easy stripping and cutting
★ For general purpose internal wiring of appliance

Conductor		Finished Products			Maximum Resistance at 20ºC
AWG/No.of Cond.	Cond. No.	Insulation Avg. Thick.	Outside Dia.	Packing
	/mm	mm	mm	m/r	Ω/mm
30×2C	7/0.1	0.45	1.20×2.50	610	354.33
28×2C	7/0.127	0.45	1.30×2.70	610	223.75
26×2C	7/0.16	0.45	1.40×2.90	610	139.76
24×2C	11/0.16	0.45	1.50×3.10	610	88.36
22×2C	17/0.16	0.45	1.70×3.50	610	60.16
20×2C	21/0.178	0.45	1.90×3.90	305	38.58
18×2C	34/0.178	0.45	2.10×4.30	305	22.98
16×2C	26/0.254	0.45	2.40×4.90	305	15.06
