Digital Controlled Fully Automatic Book Wire Binding System

Product Description

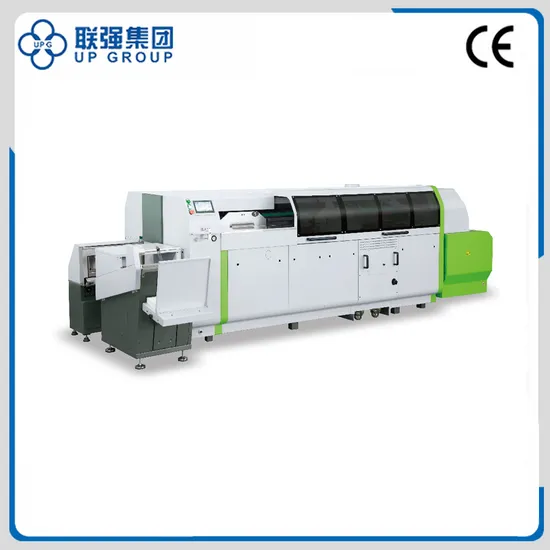

SX160/43 Digital Controlled Fully Automatic Book Wire Binding System Product Description SX160/43 consists of sheet-separation, sheet-turning, transferring, positioning, sewing, thread-cutting, book-separation, threadend-cutting and computer-controlled system. The whole machine is produced in one piece.
MAIN FEATURES: 1. Intelligent control: the maximum speed of up to 160/min, color touch screen, monitoring the whole process into paste, transport, multi-paste, paste leak, sewing, stickers and other close working links to ensure the quality of sewing;
2. Fault detection: the emergence of the lack of posts, machine alarm when leakage posts, more posts, congestion, out posts, shrink posts and disconnection and other failures and downtime, displaying faul. Fault alarm: Machine automatically stops when fault alarm blares;
3. Stick with automatic error detection function "optional";
4. Storage memory: can store 20 product's locking program, can be repeated invocation;
5. Automatic adjustment: through the touch screen set the size of the book, uncover the page after confimation, press the start button, the transmission system automatically locate the conveyor belt, open the page fip device, locate the saddle drive chain and the acceleration wheel, and adjust the height of the book table. Simple and easy to learn, fast operation, fast conversion board, and improve production efficiency;
6. The correct position of the book is that the book post on the saddle is precisely positioned through the pulley of the synchronous belt structure.
7. Note: the blower and the manipulator separate the bottom of the book and the book stack and pick up the separated book post from the hopper. The book tit device helps eliminate the scratching phenomenon on the surface of the book.
8. Automatic page opening: there are four program controlled vacuum exposing devices installed on the top and bottom pages, which can be opened by 4+4 vacuum, and can complete 4 sets of page pins or high and low foot Book posts. They can automatically turn over pages of pages, loose pages, non long edges and uneven thickness books, and can also turn pages to books with more than 8mm long and short edges.
9. Book delivery: after the page is opened, the book post is mounted on the saddle of the conveying guide, driven by the conveying chain hook; after the acceleration wheel is sent into the locking saddle, the speed of the acceleration wheel is automatically adjusted according to the running speed of the whole machine.
10. Automatic dividing book and cutting line: automatic dividing and shearing device (cutting the excess thread to 8-10mm or so), no matter how many book posts are composed, the book distributor can be separated according to the set.
11. Flat lock and cross lock: the locking device is composed of a convex wheel type device unit, which not only reduces noise but also prolongs the service life of the cam. According to the need, it can choose a horizontal lock or a cross lock. The straight needle and crochet thread used in the lock are very short, and it is easier to insert the needle holes on the back of the book post, and adopt the fine ultrashort needle (1.6mm). The tightness stitch (19mm)lock line makes the product more smooth, and it does not leak glue easily, ensuring the high quality locking effect.
12. On demand lubrication: centralized oil supply and lubrication system, insufficient oil pressure can alarm, equipped with regular and quantitative lubrication device.When the engine is in power, lubricating oil pipes are needed to obtain regular and quantitative lubricating oil. Product Parameters

Max speed	160 cycle/min
Binding size	Max.320x430mm Min.75x120mm
Max set of sewing needles	11sets
Distance between needles	19mm
Min signature sewed	2signature
Per signature thickness	0.5-1.5mm
Max overlapping signatures	4 signature
Min grip length	8mm
Power	5kw
Needle diameter	1.6mm
Air consumption (external supply)	Max. 1.0m³/min at 8bar
Weight	4000kg
Dimension	2700x1600x1700mm
