ASME Standard Mobile Gas Station LPG Skid Station for Sale

Product Description

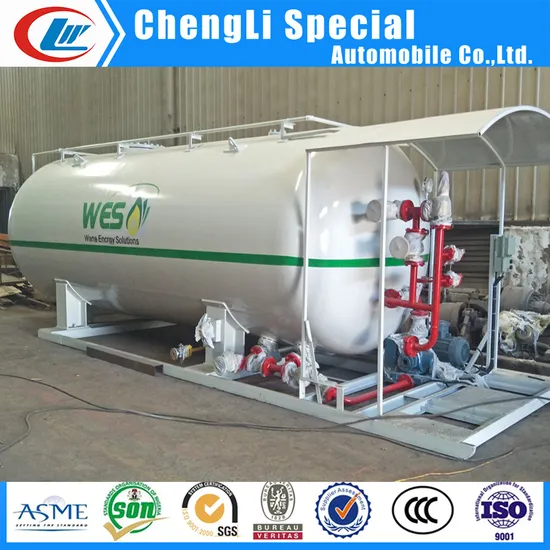

ASME Standard Mobile Gas Station LPG Skid Station for sale
Product Description
LPG skid station is our new product which can be used to fill LPG gas into LPG cylinders(for cooking) or trucks(for fuel), our LPG skid station is equipped with high quality sun visor to protect itself from hot environment. Our LPG skid station is in a highly automated type, our customer will be able to use it as soon as they get it, no more extra complex adjustment and installation shall be need.
Countries where we are exporting LPG skid station
Africa and Asia are the two major exporting regions of our's. We mostly export our products to the following countries:
Tajikistan, Nigeria, Angola, Mongolia, Garner, Philippines, Kenya, Papua, New Guinea, Zimbabwe, Saudi Arabia, Congo, Laos, Kyrgyzstan, Owe Ning, Burma, Sultan, Indonesia, Zambia, Vietnam, Kazakhstan, Kampuchea, North Korea, Liberia, Algeria, Azerbaijan, Mexico, Uzbekistan, Maldives, Fiji, Namibia, The Democratic Republic of the Congo, Afghanistan, Chile, Equatorial Guinea, Mozambique, Djibouti, Peru Bolivia, Mauritanian, The Ivory Coast, Eritrea, Russia, Benin, Iraq, Brazil, Libya, Qatar, Vanuatu, Australia, Suriname, Iran, Cuba, Cameroon, New Zealand, The Marshall Islands, South Africa, Ethiopia, St. Kitts and Nevis, Sri Lanka, Niger, Malaysia, Trinidad and Tobago, Botswana.
Advantages of our LPG skid station
This skid LPG station will not need extra complex adjustment and installation, you can use it as soon as you get it,
This product can refill two to four cylinders at one time and filling speed is very fast(0.5kg/s),
The dispenser(filling machine) can make invoice, automatic stop and the weighing error is less than 0.05kg
The whole station is equipped with explosion-proof circuit system to guarantee the safe use.
Even in some place where the electric power is not stable our product can run very well with the equipped high quality generator.
Product Parameters

10cbm LPG skid station
Normal Diameter	1600mm	Designed Pressure	1.77MPa
Whole Dimension	6760*1620*2290	Tank Dimension	5260x1620x2210mm
Side thickness	10mm	Bottom thickness	10mm
Curb weight	2950kg	Loading weight	3990kg
Total weight	6940kg	Filling factor	0.42
Medium density	420kg/m3	Designed Temperature	50ºC
Tank material	Q345R or Q370R	Corrosion	1mm
Heating testing	PWHT(bulk heat treatment)	Water Testing	2.22 Mpa
Safety spare parts for LPG tank	1, Safety Valve 2, Cut off Valve 3, Liquid meter 4, Pressure gauge 5, Temperature gauge
Safety spare parts for gas pipeline system	1, Pump shock tube 2, Pipe flange 3, Pump outlet check valve 4, Safe backflow 5, Piping safety valves 6, Pump inlet strainer 7, Gas leak detector
Standard configuration	1, 10m3 LPG storage tank(1 set) 2, Pump(1 set) 3, Single nozzle dispenser, 1 set 4, Explosion-proof circuit system 5, Power distribution cabinet 6, Compressor(transport LPG from truck/trailer to tank) 7, Sun visor 2 set for tank

Detailed Photos

Production process
Company Profile
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.
1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.
2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.
3. More than 300 type of products supply.
4. Our sales volume of 2015 reach US$300 million.

Our Services 1. All spare parts would be OEM and supplied at cost prices;
2. Overseas service center to ensure efficiency after-sales service;
3. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
Other Products
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Packaging & Shipping
Naked or waxed . Delivery time:30 days after official order. By RORO or Bulk ship. FAQ
Q:What is your payment term?
A:We accept payment by T/T,L/C.
Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets
Q:Is your factory a manufacturer or trading company?
A:We are the manufacturer , we are the biggest special trucks factory in china special truck base.
Q:Where is your factory located,can we visit your factory?
A:Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!
