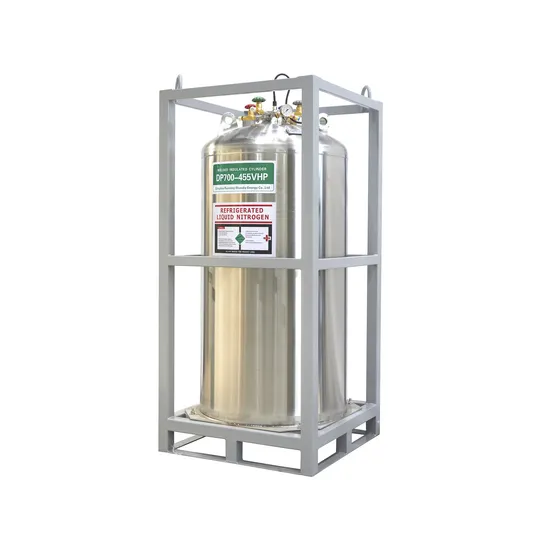

195L Liquid Argon/Oxygen/Nitrogen/Cardon Dioxide Dewar Tank

Product Description

Cryogenic Dewar Tank for LOX/LIN/LAr/LCO2 Product Description
The cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG etc. * Vaporizer installed inside can supply 10m3/h gas continuously* Adopt the international standard connectors, all valves are imported brands.* We can customize according to the customers.* Damping ring design to make sure the transportation safely* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy /research/fish-heat preservation, etc.
Specification

Model		DPL450-175-1.37	DPL450-175-2.3	DPL450-195-1.37	DPL450-195-2.3	DPL450-210-1.37	DPL450-210-2.3	DPL450-210-2.88
Geometric volume(L)		175	175	195	195	210	210	210
Effective Volume(L)		163	163	181	181	195	195	195
Size( diameter*height)(mm)		508*1498	508*1498	508*1624	508*1624	508*1718	508*1718	508*1718
Working pressure( Mpa)		1.37	2.3	1.37	2.3	1.37	2.3	2.88
Set pressure of main safety valve( Mpa)		1.59	2.41	1.59	2.41	1.59	2.41	3.1
Set pressure of bursting discset/Set pressure of assisant safety valve( Mpa)		2.5/2.41	3.84	2.5/2.41	3.84	2.5/2.41	3.84	4.9
Evaporation rate( Liquid nitrogen)		≤2.1%	≤2.1%	≤2.1%	≤2.1%	≤2.1%	≤2.1%	≤2.1%
Empty weight( kg)		115	138	121	145	128	153	173
Maximum filling weight(kg)	LO2(KG)	186	186	207	207	223	223	223
	LN2(KG)	131	131	146	146	157	157	157
	LAR(KG)	227	227	253	253	272	272	272
	LNG(KG)	69	~	77	~	82	~	~
	LCO2(KG)	~	188	~	209	~	225	225
Level gauge		float type	float type	float type	float type	float type	float type	float type
Surface treatment		Polishing	Polishing	Polishing	Polishing	Polishing	Polishing	Polishing
The base style		Rubber base	Rubber base	Rubber base	Rubber base	Rubber base	Rubber base	Rubber base

Our Advantages
*Ideal for liquid nitrogen, oxygen, argon, CO2 or nitrous oxide
* Different sizes, pressure, and features to meet your needs
* Stainless steel bottle construction Thick, dent-resistant outer shell
* Durable inner-vessel support system Heavy-duty footring and large diameter handling ring with four supports Detailed Photos
Company Profile
Qingdao Ruiming Bluesky Energy Co., Ltd is located at Qingdao, the biggest seaport in China, owns the convenient shipping advantages. Ruiming are recognized by our customers as offering unparalleled technical knowledge & support resulting in the ability to provide cost effective and competitive solutions. We strive for our customers to enjoy working with us due to our friendly, reliable and professional attitude in all that we do. This web site is designed to give you a "feel" for the quality of Ruiming as a company and provide you with an overview and technical information of our product ranges. If you cannot find what you are looking for or would like any advice please feel free to contact us - we will do all we can to help you.Main products:1. Gas products: Argon gas, helium gas, hydrogen gas, Carbon Oxide (CO2), propane gas, acetylene, Nitrous Oxide, LO2, LN2,LCO2. LNG, ect.2. All kind of high pressure gas cylinder and welded gas cylinders: Oxygen Cylinder (GB 5099/ ISO 9809-3/ DOT/ EN standard gas cylinders) Acetylene Gas cylinder Liquid Chlorine Cylinder/ Liquid Ammonia Cylinder3. Liquid nitrogen containers: all kinds of liquid nitrogen containers from 2L to 50L4. Cryogenic Liquid Cylinder : 175L 195L 210L 495L capacity 5. Liquid storage tank: 5M3, 10 M3, 20M3, 30 M3, 50M3, 100M3, 200M3, ect.6. Gas equipment: Vaporizer, Manifold, Gas filling pump, ect.
FAQ
Q1. What's the MOQ?A:Different products have different MOQ,Pls feel free to contact with me directly for your requirement.Q2:What is the delievery time?A:Depends on your quantity.Normally it will cost 7-10 days for preparation.Q3:What is the package, storage& transportation details?A:Package:Steamless steel cylinder with different valves,or as to your requirement.Stored in shady, cool, dry, eventilated warehouse, and keep away from sunlight and any ramming.Q4:What is the payment terms?A:30% T/T in advance, balance before shipment.Q5:How to check gas quality?A: Before filling the gas, the cylinder will be treated carefully, such as cleaning, drying, vacuum pumping and replscement.Then, we will take tests every treated cylinder to assure them inside purity.Thirdly, we will take a test for all the gas after fill into the cylinder, to make sure the quality of the gas along with the tested reported.Q6: If the cylinder recycled and can be refilled gas again?A: Yes, usually the seamless steel cylinder can recycle to use for 20 years, and also can be refill gas again.But , when you ordered our cylinder, you have to inform us before exporting, we will handle all the import customs clearance formalities.Q7:Why choose us?A: Fast delivery, Factory price and soonest reply within 24 hours.
