Automatic Twin Vertical Band Saw Machine Small Wood Process Cutting Line

Product Description

Product Description

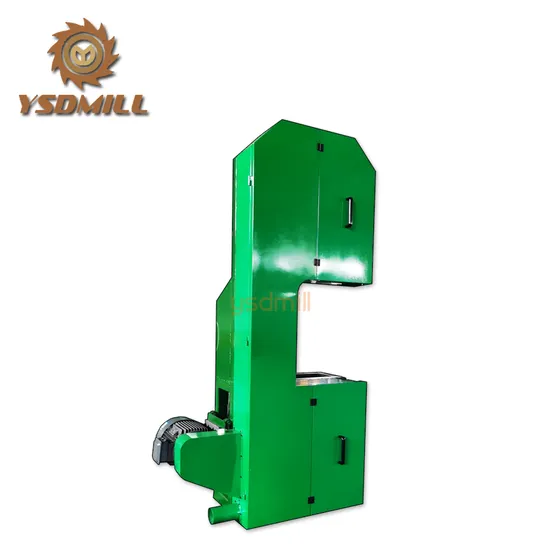

The twin vertical band saw machine is the newest design which can improve your cutting precision efficiency.Double head vertical sawmill machine remove two side of logs at same time. Cost-effective, versatile, designed for high performance, and built strong for long working life reliable service. The twin vertical band saw machine combine with automatic log loading deck, vertical bandsaw , log turning conveyor, input and output chain system, side slab conveyor etc, touch screen control easy operation.

Model	YVH32	YVH36
Max cutting dia	500mm	500mm
Saw wheel dia	800mm	900mm
Saw blade width	80mm	100mm
Saw power	18.5 KW(25HP)	22 kw(30HP)
Saw guide lifting	Automatic	Automatic
Saw blade tension	Automatic	Automatic
Voltage	380V/50HZ/3phase	380V/50HZ/3phase
Overall size	1200*900*2200mm	1300*1000*2500mm
Weight	950kgs	1150kgs

Log turning system with hydraulic power turning roller, this machine use for turning log to suitable cutting angle, the length of machine can custom made as your log specification.

Double head vertical sawmill machine, precision cutting double side of round log at same time, saw wheel diameter 800mm, saw blade width 3inch, the distance between blade is adjustable.

Automatic band saw blade tension system, high working efficiency, easy operation.

Slop chain conveyor will take out the side slabs after cutting by twin vertical saw machine, labour cost saving.

Laser measurement will help operator check which place the saw blade will cut.

Touch screen with PLC control system, all sawmill line function can be control in this panel, in this program you can setting many different cutting size, or adjust cutting speed, electric parts brand is optional.

Wood centering system, make sure wood in center of roller conveyor before into next cutting process.
Packing & Delivery
Company Profile
FAQ

Q: Are you a trading company or a manufacturer?
A: We are manufacturer.

Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.

Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.

Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.

Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.

Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.
