Mini Spinning System Laboratory Drawing Frame

Product Description

Product Description
Product Description
AT204 Laboratory Drawing frame is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT204 Laboratory drawing frame is used to make drawn sliver from carded sliver.

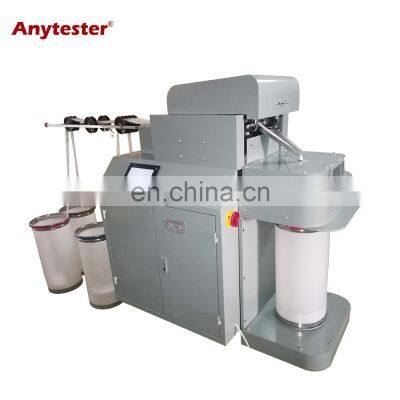

Detailed Images
Mini machine, save researching cost and easy to operate and maintain;
Touch screen & PLC control;
Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
Frequency converter of high efficiency to control roll speed;
Doubling up to 8 slivers;
Four-up-four down drafting structure;
Can coiler to output and coil cotton sliver in sliver can;
Specification

Model	AT204
Fiber type	Cotton or cotton-type chemical fibe Customized for wool
Doubling	Up to 8
Feed type	Sliver
Output type	Sliver
Sliver speed	2, 4, 6, 8, 10, 12, 14, 16m/min, selectable
Roll diameter	¢35mm
Drafting type	4-roll, 3 straight line drawing
Drafting structure	4-up-4-down
Drafting range	2~30
Doubling range	Up to 8
Pressurizing method	Spring pressure cradle
Output capacity	0.25~1kg/h, adjustable
Sliver can size	Φ250×550mm
Control mode	Touch screen & PLC control
Power supply	AC220V 50Hz, 650W
Dimensions	1300×800×1750mm (L×D×H)
Weight	400kg

Packing Details

Packaging
Size(cm)	130(L) * 80 (W) * 175 (D)
Weight	400Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
