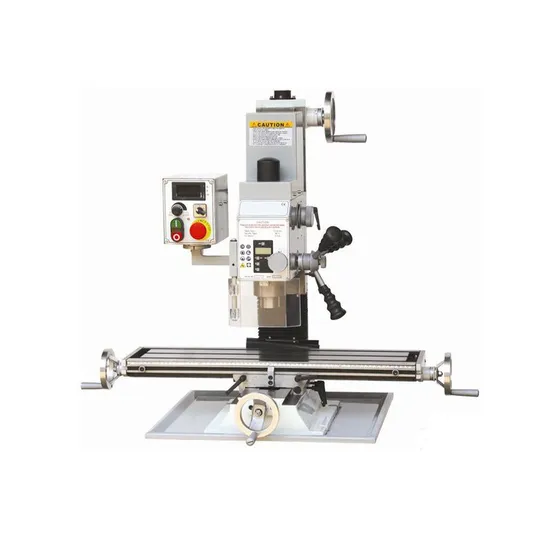

Senmo High Precision Bored Milling Drilling Machine Bf25 Bf25L
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
BF25 BF25L
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Spindle Taper
Mt3/R8
Sleeve Travel
50mm
Spindle Speed
50-2250rpm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Milling Drilling Machine Feature |
| High precision bored and honed milling head. Precision ground worktable. Tilting and swiveling head. With micro-feed handwheel and lever down feed. Adjustable gibs on table. Adjustable stops on table. Accurate position, strong rigidity, strong cutting power. Gear drive, lower noise. |
| Specifications | BF25 | BF25L |
| Max. drilling capacity | 25mm | 25mm |
| Max. face milling capacity | 65mm | 65mm |
| Max. end milling capacity | 25mm | 25mm |
| Max. distance from spindle to table | 190mm | 190mm |
| Table size | 500x180mm | 700x180mm |
| T-slot size | 12mm | 12mm |
| X axis travel | 290mm | 490mm |
| Y axis travel | 180mm | 180mm |
| Z axis travel | 280mm | 280mm |
| Spindle taper | MT3/M12 (R8) | MT3/M12 (R8) |
| Sleeve travel | 50mm | 50mm |
| Spindle speed | 50-2250rpm | 50-2250rpm |
| Swivel angle of headstock | ±90° | ±90° |
| Motor | 900W | 900W |
| N.W./G.W. | 110/140kg | 130/160kg |
| Packing size | 610x560x910mm | 770x720x910mm |
| Standard Accessories | Optional Accessories |
| Speed display | Halogen lamp |
| Morse taper MT3/B16 | Coolant pump |
| Draw bar M12 | Milling vice |
| Drill chuck 3-16mm | Keyless drill chuck 3-16mm/B16 |
| Toolbox with tools | Collet chuck |
| End mill cutter | |
| Stand | |
| Chip tray |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
