Best Selling Concrete Pump for Construction

Best Selling Concrete Pump for Construction

US$2,900.00
1-2 Pieces
US$2,600.00
3-4 Pieces
US$2,400.00
5+ Pieces

Basic Info.

Model NO.
SFST30
Shotcrete Type
Wet
Machining Process
Mud Pump
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Product Name
Concrete Pump
Convey Capacity
25m3
Material Diameter
30mm
Convey Distance
260m
Conveying Cylinder Diameter
160mm
Weight
2000kg
Transport Package
Wooden Cases
Specification
4000*1700*1700mm
Trademark
SFST
Origin
China
Production Capacity
500000 Per Year

Packaging & Delivery

Package Size
410.00cm * 180.00cm * 185.00cm
Package Gross Weight
2060.000kg

Product Description


Product Description

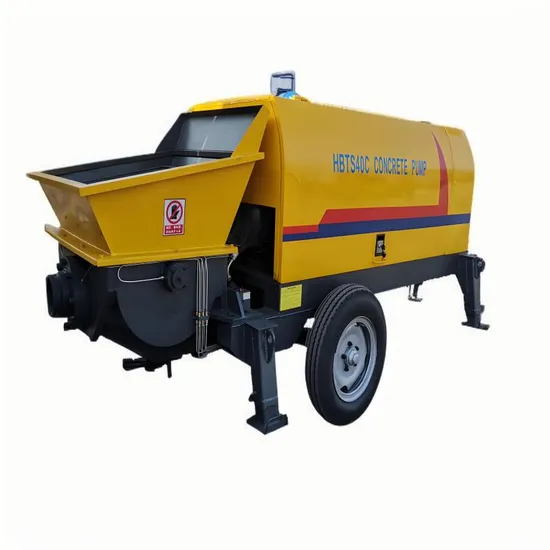

Concrete pump
Concrete transfer pump (also known as concrete pump) is a kind of construction machinery used to transport concrete to the specified position of the construction site through the pipeline at high pressure.
Concrete transfer pumps are widely used in buildings, Bridges, tunnels and other projects, especially for high-rise buildings, large volume concrete pouring or long-distance transport scenarios.
Concrete transfer pump can significantly improve the construction efficiency and the quality of concrete pouring.
Product Parameters
Power 37KW
Maximum theoretical throughput 20-25m3/h
Maximum outlet pressure 11Mpa
Maximum diameter of aggregate 30mm
Cylinder diameter 90mm
Conveying cylinder diameter 160mm
Dimension 4000*1700*1700mm
Weight 2200kg

Working Principle
The core working principle of concrete transfer pump is to push concrete to flow in the pipeline through mechanical or hydraulic power.
1. Material suction and push
Suction stage: the hopper of the concrete conveying pump receives the concrete poured by the mixer truck, and the hydraulic system drives the piston (or extrusion pipe) back to form negative pressure and suck the concrete into the conveying cylinder.
-Push stage: the piston (or extrusion pipe) of the concrete delivery pump moves forward to press the concrete into the delivery pipe, and the continuous pumping is achieved by alternating and reciprocating motion.
2. Pipeline transportation:
-Concrete flows along the pipeline under high pressure and finally reaches the pouring point through the elbows, hoses and other components of the concrete delivery pump.
3. Reversing control:
- The reversing valve in the hydraulic system of the concrete conveying pump automatically switches the direction of piston movement to ensure the continuity of pumping and avoid interruption.
Company Profile
Shaanxi Saifusite Mechanical Electrical Equipment Co., is a professional company which engaged in researching, developing, manufacturing hydraulic mining equipment, hydraulic construction machinery equipment, ultra-high pressure pumping station, cylinder and other mine equipment.Since the company since its inception, has been in line with the concept of quality first, reputation first, with high quality and thoughtful service return customers and society.
At present, Shaanxi Saifusite Mechanical Electrical Equipment Co., produces the product has a variety of cleavage gun, splitting rods, splitting machine models, dig to drill machine, electric hydraulic pump and high pressure cylinder, high pressure jack, synchronizing lifting equipment, such as broken hammer hydraulic machinery.
Shaanxi Saifusite Mechanical Electrical Equipment Co., has decades of rich experience in ultra-high voltage equipment. No matter today or in the future, it is absolutely a reliable and excellent brand.
Packaging & Shipping
FAQ
Q1: Warranty terms of your machine?A1: One-year warranty for the machine and technical support according to your needs.Q2: Will you provide some spare parts for the machines?A2: Yes, of course.Q3: What about the voltage of products? Can they be customized?A3: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your equipment. Q4: Which payment term can you accept?A4: 100% T/T( Decide according to actual situation)Q5: How long will it take to arrange production?A5: we can deliver the normal goods within 3-5 working days. Other nonstandard electrical items we will deliver within 25-30 days. Q6: Can you accept OEM orders?A6: Yes, with a professional design team, OEM orders are highly welcome. Q7: Which trade term can you accept?A7: Available trade terms: FOB, CIF, CFR, EXW, etc.
