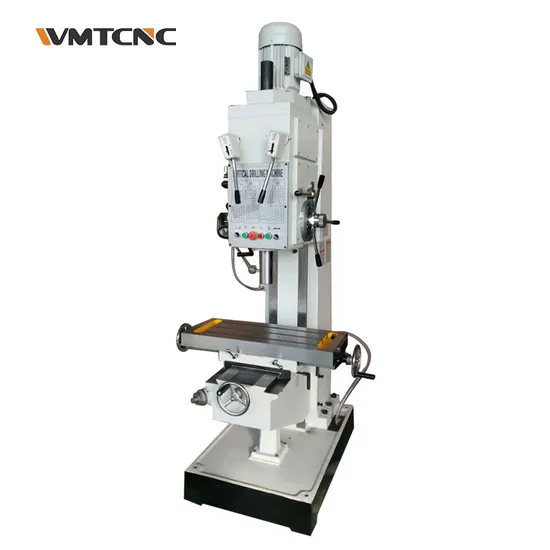

Z5150B Cheap price hot sale Vertical drilling machine with CE

Z5150B Cheap price hot sale Vertical drilling machine with CE

US$3,800.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5150B
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Spindle speed
31.5-1400 rpm
Spindle travel
200 mm
Table size
560X480 mm
Transport Package
Plywood
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
Production Capacity
50 Sets/ Month

Product Description

Specification Z5150B
Max drilling diameter 50mm
Spindle taper MT5
Max taping capacity M30X3
Stroke of spindle quill 250mm
Spindle box travel(manual) 200mm
Spindle speed step 12
Spindle speed range 31.5-1400r.p.m
Spindle feed step 9
Spindle feed range 0.056-1.80mm/min
Table size 560x480mm
Vertical travel 300mm
Max distance between spindle and table surface 750mm
Main motor power 3kw
Motor of cooling pumps 40w
Speed of cooling pumps 25L/min
T-slot NO./width/distance of table 3/18/150 mm
Overall size 1090x910x2465mm
Net weight 1350kg

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
