10gbps 90W Poe Injector 802.3bt Single Port 10ge Midspan

Product Description

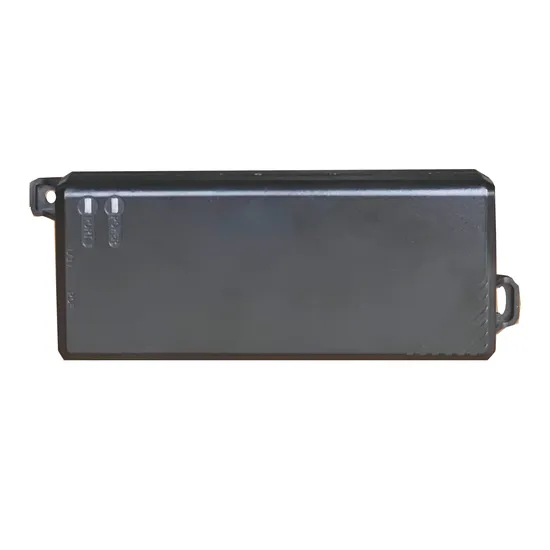

PSE5290T
10G Power-over-Ethernet Injector
Product Description:
PSE5290T is a single port mid span product, which provides a compact, cost-effective and fully IEEE 802.3at/bt compliant solution for base station equipment, high-speed 10G network equipment, wireless LAN (WAN) access points, IP security cameras, VOIP phones and other low port density installations.
PSE5290T mid span eliminates the need for external power and its associated AC / DC power cables, providing a compact, economical, safe and reliable power solution on top of the existing Ethernet infrastructure.
Product Features:
• Full IEEE 802.3af, IEEE 802.3at/bt Compliant
• Up to 90W of Power on 4-pairs
• Auto-detect of POE IEEE 802.3af ,IEEE802.3at/bt equipment
• Supports 10/100/1000,2.5G, 5G, 10G Base-T applications
• LED indicators power input indication
• Distance up to 100 meters at 2.5Gbps, max 30meter at 10Gbps.
• Internal AC/DC converter - no need for external power brick
• Easy plug-and-play installation
• Surge protection
• EMI standards complies with FCC, CE class B
Product Specifications:

Item	Description
No. of Ports	1
Pass Through Data Rates	10/100/1000Mbps,2.5G, 5G, 10G
Power over Ethernet Output	Pin Assignment and Polarity: 12+/45+ 36-/78- Output Power: 56V1.61A User Port Power: 90W
Input Power Requirements	AC Input Voltage: 100 to 240 Vac AC Frequency: 50 to 60 Hz
Dimensions	175mm*65mm*30mm(L*W*H)
Weight	0.25kg
Enclosure material	Plastic
Connectors	RJ-45, EIA 568A and 568B
Environmental Conditions	Operating Ambient Temperature:-10 to 55 ºC Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-20 to 85ºC Storage Humidity: Maximum 95%, Non-condensing
Reliability	MTBF: 100,000 hrs. @25ºC
Regulatory Compliance	IEEE 802.3af (PoE), IEEE 802.3at/bt RoHS Compliant, CE, FCC
Electromagnetic Emission & Immunity	FCC Part15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI
Surge Protection	AC port: 3kV RJ45 port: 2kV
