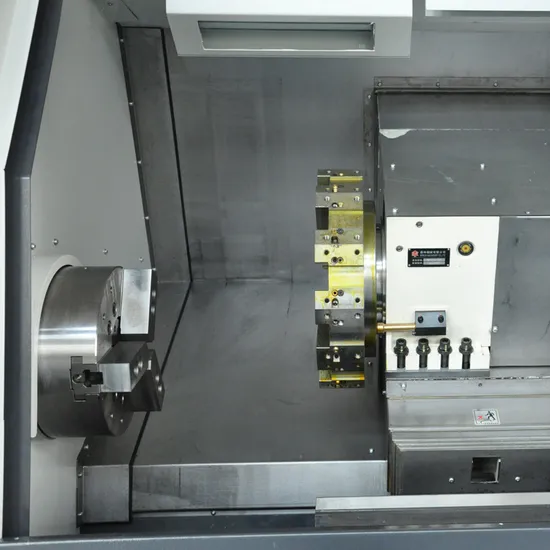

Manufacture Automatic High Precision High Speed Precision Lathes Machine
| US$41,833.00-48,986.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDCK-40
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
105mm
Max Swing Over Bed
750mm
Tool Turret
12 Way
Spindle Speed
100-2500rpm
Max Turned Length of Workpiece
870mm
Main Motor
15/18.5 Kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/Year
Product Description
Manufacture Automatic High Precision High Speed Precision Lathes machineProduct Description
| MODELS | KDCK-40 |
| CAPACITY | |
| Max. swing over bed | Ф750mm |
| Max. cutting diameter for disc parts | Ф700mm |
| Max. cutting diameter for axle parts | Ф350mm |
| Max. length of workpiece | 870mm |
| TRAVEL | |
| Max. cross travel(X) | 350mm |
| Max. longitudinal travel(Z) | 1050mm |
| FEED | |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 30m/min |
| SPINDLE | |
| Max. speed of spindle | 100-2000rpm |
| Spindle nose | Ф105mm |
| Spindle bore | Ф220mm |
| Type of spindle motor | Variable frequency |
| Spindle motor power | 15/18.5kw |
| Hydraulic chuck | 12″ |
| TOOL POST | |
| Tool number | 12 |
| Outside diameter of cutting tool shank | 25×25mm |
| Inner dia. of cutting tool shank | Ф40mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф100mm |
| Tailstock sleeve travel | 210mm |
| Taper hole of tailstock quill | M.T.No.6 |
| OTHERS | |
| Repeatability | ≤0.006mm |
| Min. input | 0.001mm |
| Bed structure | 30° slant bed (two pieces of bed stand) |
| Overall dimensions(L×W×H) | 3375×2250×1965mm |
| Net weight | 5400kg |
