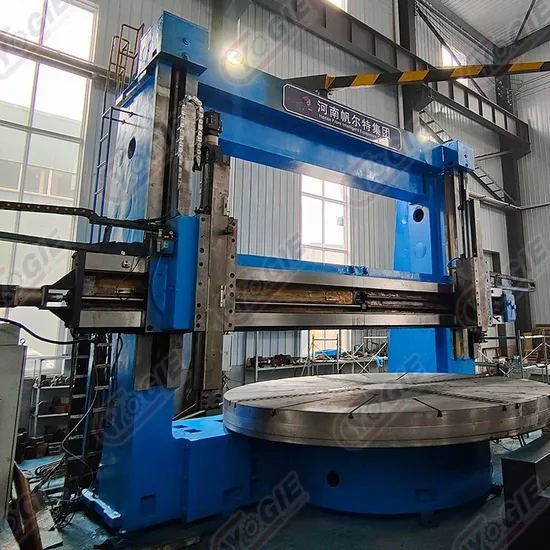

Factory Price Metal-Working 5m CNC Vertical Lathe CNC Double Column Turning Lathe
| US$159,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VTL-2000
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
Precision
Certification
ISO 9001
Condition
New
Spindle Bore(mm)
150
Spindle Motor Power(Kw)
50
Number of Axes
2
Travel (X Axis)(mm)
2500 mm
Travel (Z Axis)(mm)
1600 mm
Tool Post Stations
12
Max. Spindle Speed (r.p.m)
300 Rpm
Width of Bed (mm)
5200 mm
Max. Turned Length (mm)
5000
Positioning Accuracy (mm)
0.01
Work Table Loading
20t
Machine Type
Double Column Vertical Lathe
Height of Beam Raising
3100mm
Transport Package
Box
Specification
Customized
Trademark
YOGIE
Origin
China, Henan
Product Description
| CNC operating system | | Siemens 808D |
| Workbench chuck size | mm | Φ3150 |
| Left and right stroke (X) | mm | 2100 |
| Up and down stroke (Z) | mm | 1600 |
| Maximum processing size | mm | Φ4000X3000 |
| Workbench T-slot | mm | 6-8*150 |
| (Number/size/spacing) | ||
| Use tool type | | 35X35 |
| Spindle speed (rpm) | (rpm) | 5-300 |
| X axis ball screw specifications | mm | 63*16 |
| Z-axis ball screw specifications | mm | 50*10 |
| Machine tool positioning accuracy (GB / T 20957.4-2007 standard) | mm | 0.01 |
| Repeated positioning accuracy of machine tools (GB / T 20957.4-2007 standard) | mm | 0.01 |
| X/Z axis rapid shift | m/min | 10/10 |
| Cutting speed | m/min | 8 |
| Spindle transmission mode | | Synchronous toothed belt drive |
| XZ axis servo motor transmission mode and transmission ratio | | X-axis reducer directly connected 1:4; Z directly connected transmission |
| Z axis 1:4 | ||
| X axis guide specifications | | X-axis two rectangular heavy-load guide rails |
| Z axis guide specifications | | Rectangular hard rail |
| Square Ram Size | mm | 220X220 |
| Spindle power | KW | 50 |
| Recommended selection of servo motor parameters | N·M | 35/35 |
| Air source flow | | >0.5 |
| Power supply requirements | | 380V |
| Height of beam raising | mm | 3100 |
| Work table loading | T | 20T |
| Machine dimensions | mm | 8000X3200X5000 |
| Light machine net weight | T | 58t |
