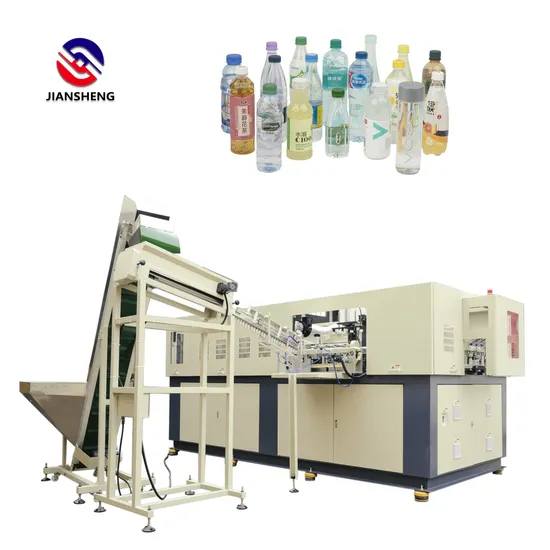

Pet Full Automatic High Speed Blow Molding Machine 4cavities 6cavities Plastic Bottle Making Pet Bottle Blowing Machine

Product Description

0.2L-0.5L Automatic Pet Bottle Blowing Mold Mahchine Pet Blowing Machine
1. 6 cavity 0.7 liter pharmaceutical bottle making machine JS-6000 With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4.Easy to maintain
5.Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

Model No	JS-6000
Production output per hours (bottles )	5500-6000PCS ( according to the weight of preform)
Total power compution ( kw)	68
Heating power (kw )	64
Operation pressure ( kg/cm2)	8
Air compution in low pressure (L/Min)	3000
Air compution in high pressure (L/Min)	6000
Blowing pressure ( kg/cm2)	35
Clamping force (kn)	350
Stretching distance (mm)	300
Mould opening distance ( mm )	200
Mould cavities	6
Machine weight	5T

Internal details of the Machine
