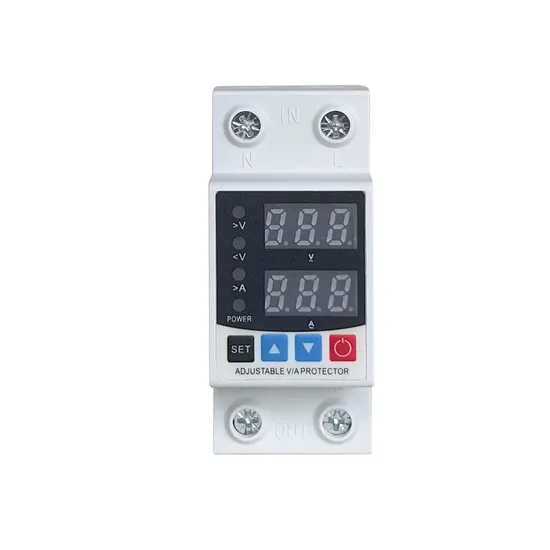

Intelligent Adjustable V/a Protector 40A 63A DIN Rail Over and Under Voltage Protector

Product Description

Product Description Application This adjustable VA protector integrates over-voltage protection, under-voltage protection, over-current protection and integrated intelligent protector. When there is over-voltage, under-voltage or over-current solid barriers in the line, this product can instantly cut off the circuit, avoiding damage to electrical equipment. Current for 40A and 63A selectable. Features 1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 4.Voltage display(voltage measurement) 5.Current display (current measurement) 6.Over-voltage value adjustable 7.Under-voltage value adjustable 8.Over-current protection value adjustable 9.Fault recovery delay time adjustable 10.Restore factory setting Specification

Item	Over and under voltage protector
Rated voltage	220V AC 50/60HZ
Rated current	40A/63A(Ajustable)
Over-voltage protection value range	130-300V adjustable(default 270V)
Under-voltage protection value range	80-200V adjustable(default 170V)
Over current protection value	40A/63A adjustable(default 40A/63A)
Failture recovery delay time	3s-300s adjustable(default 30s)
Installation	DIN rail

Company Profile Wenzhou LEEYEE Electric Co., Ltd. is a high-tech enterprise specialized in R&D, manufacture and sales of lightning protection equipment. The company was founded in 2010. The production and research center covers an area of 5000 square meters and has a whole set of production and testing equipment in China, such as 160kA (8/20μs30kA(10/350μs) Integrated current wave impact test bench, 0-20kV (1.2/50μs) Voltage wave generator, 0-200A (10/1000μs) Current wave generator, 1kV/ μS generator, 0-20kV combined wave generator, thermal stability tester, 100Hz-1MHz LCR digital bridge, 300KHz-3GHz vector network analyzer, etc. The main products include power supply surge protector, photovoltaic DC surge protector, signal surge protector, lightning protection box, PDU lightning protection socket, etc. The products have passed the inspection and certification of Beijing Lightning Protection Device Test Center and Shanghai Lightning Protection Center, and have CQC, TUV, CB, CE, ROHS and other certificates. Our company undertakes OEM and ODM production business, has spacious and bright modern factory buildings, standard production lines, and perfect production and quality control processes. We sincerely invite major companies to cooperate. FAQ Q1. Where is your company? A: We are factory, located in Yueqing City, Zhejiang Province, China(Mainland) Q2. What is your terms of packing? A: Generally, Leeyee brand we pack in color box, and OEM brand we pack in neutral box and QTY over 2000pcs packed in pallet. Q3. What's your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q4. What is your terms of delivery? A: EXW, FOB, CFR, CIF. Q5. How about your delivery time? A: Less than 100pcs 2days can ship out,order >500pcs, but <1000pcs in normal specification, we ship you out within 3-5 working days, . Q6. Can you make the surge protector module color according to our requirement? A: Yes, if your order quantity over 200pcs 4P we can make color as your preference. Q7. What is your sample policy? A: We supply 1unit sample for quality evaluation(sample value less than $50), but customer need to pay freight cost. Q8. Do you test all your goods before delivery? A: Yes, we have 100% inspection before delivery Q9. How do you make our business long-term and good relationship? 1. To be factory we keep good quality and nice price to ensure our customers'benifit; 2. Every customer if they have any question or need any support, we try our best to reply them as fast as possible, to stand and catch orders with them together.
