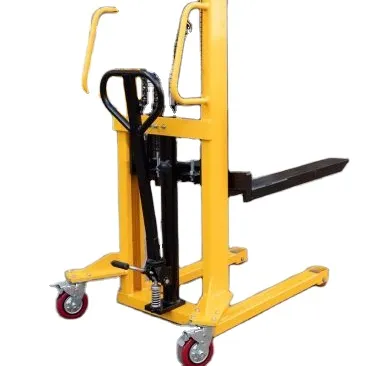

Lifting Forklift Hand Pallet Truck New Arrivals Manual Stacker

Product Description

Features:
1.It applies C type steel structure design , Lifting more stable and safe.
2.All Manual stacker have been equipped with wheel frame protection device.
3.The handle have been surround with rubber.With lengthening design, Using more comfortable.
4.Single Frame have two ways to unload by manual and pedal, using more flexible.
5.Fork with adjustable nut , it can easy to adjust the fork height.
6.Wheel frame equipped with grease fitting desigh , It will help do routine maintenance for bearing.
7.There are too many kinds of Fork types , Fixed Fork , Adjusting fork , also with the adjusting wide leg or Fixed wide leg.
Single frame series

Item Unit Model SYC0521-G SYC10161-G SYC1516-G SYC2016-G Power supply Manual Unload type Hand Cpacity kg 500 1000 1500 2000 Max.lifting height mm 1200 1600 Lowerd fork height mm 85 Fork length mm 800 1150 Fork width mm 550 Front wheel mm Φ80*58 Loaded wheel mm Φ150*35 Φ180*50 Overall dimension mm 1300*760*1540 1600*760*2030 1600*700*2030 Leg weight mm 490 Net weight kg 100 224 240 270

Double- frame series

Item Unit Model SYC1020/1520/2020-G SYC1025/1525-G SYC1030/1530-G Power supply Manual Unload type Hand Cpacity kg 1000/1500/2000 1000/1500 Max.lifting height mm 2000 2500 3000 Lowerd fork height mm 85 Fork length mm 1150 Fork width mm 550 Front wheel mm Φ80*58 Loaded wheel mm Φ180*50 Overall dimension mm 1600*700*1580 1600*700*1840 1600*700*2080 Leg weight mm 490 Net weight kg 290 310 330

Use Occasion
Certifications
Payment
Our Service
FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
