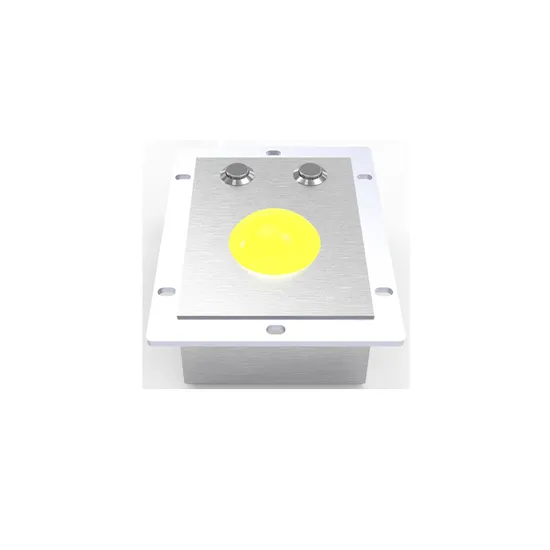

50mm Industrial Rugged Panelmout Trackball with Yellow Resin Ball
Basic Info.
Model NO.
MTB-50-Y
Material of Front Panel
304 Stainless Steel
Material of Keys
304 Stainless Steel
Material of Ball
Resin
Diameter of Ball
50mm
Key Travel
2mm
Sealing Protection
IP65
Certification
CE, FCC
Application
Industrial
Installation
Panel Mount From The Rear Side
Transport Package
Neutral Packing-Carton Box
Specification
50mm diameter ball
Trademark
KINGLEADER or customer′s preference
Origin
Shenzhen, Guangdong, China
Production Capacity
3000 PCS/Month
Product Description
Rugged stainless steel,water-proof,vandal-proof,high-sensitivity,durable trackball with left and right click buttons and ball diameter 250mm| Items | Specifications |
| Typical Feature | This trackball includes a rugged stainless steel enclosure that other conventional trackballs also may have,however its ball is replaced with a bigger one that is made of resin,this enhancement makes the ball bigger and lighter than those in other trackballs,which can bring a better feel of grasping and controlling the ball by its user,this is not what other trackballs can surpass. |
| Key Features | - Optical trackball - Enclosure is made of abrasion-resistant stainless steel - Specially designed to operate in harsh environments, making them ideal for web payphones, kiosks and other demanding applications - Dust-proof and liquid-proof,IP65 compliance - Vandal-proof - Compatible with WINDOWS98/ME/2000/XP - PS/2 or USB interface - Panel mount |
| Material | - Front Panel: 304 stainless steel - Key: 304 stainless steel - Trackball: Resin - Back Panel: aluminum alloy |
| Electrical Data | - Voltage: 5.0VDC ±5% - Electric current: 10mA - EMC compliant - Optical Trackball resolution: 1000dpi |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Lifecycle: >5 million times per key - Key Travel: 2mm - Actuation Force for Keys: 80g nominal - Lettering: etched graphics with permanent ink - Trackball diameter: 50mm |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability | -MTBF:>20,000 hours -MTTR:<30 minutes |
| Dimension | - Face plate:110 x 83 mm(LxW) |
| Weight | -0.50 kgs |
