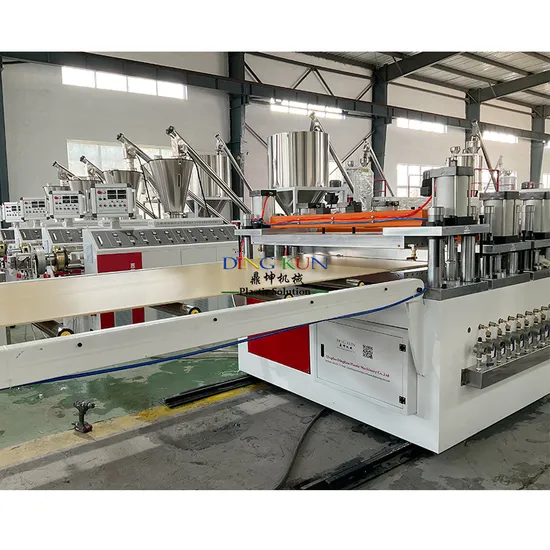

PVC WPC Wood Plastic Foam Board Sheet Extrusion Making Machine for Furniture

Product Description

High Quality WPC PVC Crust Foam Plate Machinery
WPC furniture board machine is applied to produce PVC foam board with width 1220mm to 1830mm, thickness 3mm to 40mm, and with very rigid surface, surface hardness can reach 55-80HRC, which are mostly used for advertising, cabinet, furniture board, consution template and so on.
WPC PVC foam board making machine is our featured product which can produce WPC PVC foam board.It is one kind of panel product which is used PVC resin, wood powder or (vegetable fibre) as the main materials, filled in Caco3, and added necessary lubrication, stabilize etc auxiliaries, after fully stirred heated and mixed, dispersed evenly by the high speed mixer, then heated and plasticized by the extruder and mould to form the panel.
It is widely used for building templates, industrial packing, furniture cabinet, outdoor landscapes material and indoor decoration and so on.
Product Description
Work flow
PVC powder +additive → mixer →SJSZ series extruder →Coat-hanger type mould →Vacuum calibration cooling platform →cooling rollers and edge-cutting device →Haul off →stacker
Technical information

Description	Parameter
Feed material	PVC+ assistant materials(also can add wood powder
Product size	1220*2440*5-20mm
Production line speed	0.8-1.5m/min
Max. output	350-500kg/h
Outline size	25×2.5×3 L×W×H(m),unsaturated
Weight	16T
Total power	255kw
Actual energy consumption power	210kw

Main composition

No.	Part.	Qty.
1	SJSZ80/156 Conical Double-screw Extruder	1set
2	Mould	1set
3	Calibration Forming Table	1set
4	Cooling Bracket	1set
5	Haul-off Unit	1set
6	Transverse Cutting Bracket	1set
7	Trim Cutting	1set
8	Stacker	1set

Auxiliary Machines for your choice

No.	Part.	Qty.
1	SHRL500/1000 Mixer	1set
2	SWP-400 Crusher	1set
3	SMP-500 Miller	1set
5	Water Chiller	1set

Detailed Photos
SJS80/156 Twin Screw Extruder
Machine Electrical part:ABB inverter,Siemens Motor,Siemens Contactor,,Electrical wire is CE export standard Motor 75kw SIEMENS ; Gear Box: JC Brand / DELING ; Screw& Barrel : Zhoushan
Control system : Siemens Screen touch control or RKC or OMRON table control.
Mould
Brand name : JC times with 5 pre lips
Size :1320mm 1350mm 1100mm 1000mm ; Finished size :1220mm ;Thcikness :3-25mm, 3-30mm,3-40mm
Vacuum Calibration platform
Max. calibrating width: 1450mm ; Calibrating table length:2000mm; Vacuum pump power:5.5kw*2 units ; Max. exhausting volume:80m3/min ; Water pump power:4kw
Eight Pairs Rubber Rollers Traction Machine With Trimming Unit And Dust Collector
Max. pulling width:1450mm ; Max pulling thickness:20mm
Pair roller qty: 8 pairs ; Driven motor power:5.5kw
Cutter Unit
Rack type synchronize pressing unit
Special design flat cutting motor: 3kW ; With non-pole cylinder left and right moving system
Cutter motor brand:Siemens ; Cut thickness :3-40mm
Automatic Discharge
Application

Packaging & Shipping
Certifications

Company Profile
1.We will provide the Feasibility Analysis Report for the wood-plastic project.
2.We will provide the model selection and technical parameter for wood-plastic machinery.
3.We will provide the design for the plant and electric power accounting for the facilities.
4.We will provide the design for wood-plastic formula according to the product requirements.
5.We will provide the technology of wood-plastic product surface treatment
6.We will provide technique training for operator.
7.We will provide solution for the practical problem during the production.
8.We will install and test the machine for free.
9.We will provide turnkey project to customers.
FAQ
1. Quality Control Management
Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control
Q: Do the QA/QC inspectors work independently from the production line?
A: Yes
Q:How many QA/QC inspectors in total?
A: 4
Q: Number. of Employees in Each Production Line
A: Supervisor 1 ; No. of Operators 29 ;No. of In-line QC/QA 2
2.Supplier Management
Q:Does the company have a supplier assessment procedure?
A:Yes
Q:Does the company have an updated list of approved suppliers?
A:Yes
Q:Does the company establish and implement a standard procedure for purchasing contract review and approval?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, assessment reports are available for the last 1-3 years
Q:Are the company's purchasing documents sufficient to ensure product safety control and their customers' requirements?
A:Yes, the purchasing document includes all the information required
Q:Is there a procedure to conduct random product inspections after final packaging?
A:Yes, with clear standard and written inspection records
Now we have machines in stock,sincerely invite you to vist our factory! Also you can contact me for machine's running video.
