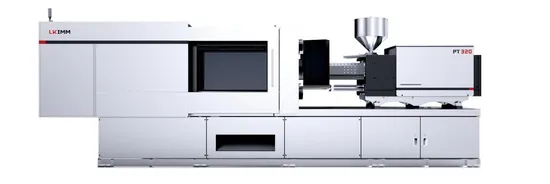

Lk Potenza-III 400 Ton High Precision Servo Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have more than 10 production bases in domestic China, 1 in Taiwan and 1 acquired company IDRA in Italy, it is one of the world's leading die casting machine manufacturers. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.
There are over 60 sales and service centers in the world with high-quality after-sales service. Our 24-hour prompt response system provide all-around fully coverage customer service.
Key features
1. Enlarged design of the mode-locking structure
2. The whole machine layout is reasonable, the shape line is firm
3. The momentum is strong and the cycle is shorter
4. High response, low noise hydraulic system
5. High precision linear guide injection unit
6. Add cloud injection molding network interface
Use of application
Power Tool, Personal Care, Toys, Electrical Appliances, Body Parts, Steering Wheels, Small Packaging, Daily product
Technical Parameter List

	ITEM	UNIT	PT400
Injection Unit	Shot Weight	g	1086	1260	1447	1646
	Screw Diameter	mm	65	70	75	80
	Injection Volume	cm3	1194	1385	1590	1809
	Injection Pressure	MPa	213	184	160	141
	Screw L/D Ratio	L/D	22.6	21	19.6	18.4
	Injection Rate	cm3/s	342	397	456	519
	Plasticizing Capacity	Kg/hr	180	208	238	265
	Screw Speed	r/min	180
	Hopper Capacity	L	100
Clamping Part	Locking Force	kN	4000
	Die Height (Min.-Max.)	mm	250-750
	Opening Stroke	mm	700
	Space Between Tie Bars	mm	720×720
	Ejector Stroke	mm	180
	Ejector Force	kN	110
Other	Pump Motor Power	kW	48.2
	Max Working Pressure	MPa	17.5
	Oil Tank Capacity	L	590
	Heating Capacity	kW	31.5
	Machine Dimensions (L×W×H)	mm	7560x1890x2170
