Antai De Vulcanizacin De Prensa for 1200mm Conveyor Belt

Product Description

De Vulcanizacin De Prensa For 1200mm Conveyor Belt
e Product Description
Vulcanizacin De Prensa For 1200mm Conveyor Belt
Application of rubber belt vulcanizer :

1. Steel Cord Belt Intermediate Rubber is an uncured rubber for hot vulcanized belt splicing.

2. It is designed to use as an inter-core cord rubber replacement material in splicing steel cord conveyor belts or a tie gum in fabric belts.
3. The material is designed to bond to cured intercore rubber and wire cords in all standard grade steel cord conveyor belts, as well as fabric belt cured skim rubber and general bond improvement material for general grade fabric conveyor belts.

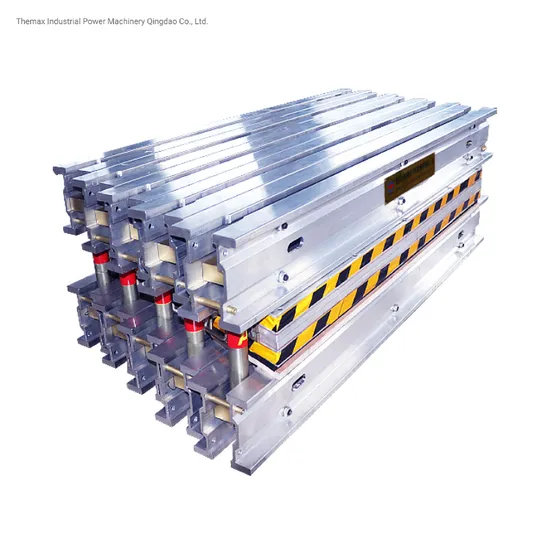

The ZLJ sectional has uniform pressure bag and aluminum/steel bolt and high grade aluminum platens and beams with restraining system set as standard. Such belt splicing system designed to be portable and easy to set-up and remove from the site.
We can manufacture to all sizes and pressure up to 200 psi required for different fabric belts and steelcord belts.
Technical Parameters:
* Vulcanizing temperature: 145ºC (adjustable 0~200ºC)
* Temperature-rising time (from normal temp to vulcanizing temp):≤50 mins(around 25~30 mins normally)
* Improved cooling system: using pressure pump for cooling:only 5mins (cooling from 145 to 75 degrees)
* Belt width: from 650mm to 3000mm 200PSI alike Uniform Pressure Bag for Conveyor Belt Press
* Degree of the heating platen:22 °/17 °/ 20 ° (rectangle and other degree is optional)
* Waterbag/ air pressure Press for 100PSI, 200PSI etc.
* Surface pressure for textile and steel cord belts, Up to 1.8Mpa.
* 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
* 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
* Customization/OEM:Different heating platen size and combination

The dimension and shape of the machine can be customized by your requirements. STYLE design available
Model	Belt width(mm)	Total Power(kw)	Dimensions (L*W*H mm)	Net Weight (kg)	Max weight of single Component after separation(kg)
ZLJ-650*830	650	9.5	1370*830*630	430	45
ZLJ-650*1000		10.8	1370*1000*630	500	66
ZLJ-800*830	800	11.2	1520*830*630	535	70
ZLJ-800*1000		13.5	1520*1000*630	575	79
ZLJ-1000*830	1000	14.1	1720*830*630	595	82
ZLJ-1000*1000		15.7	1720*1000*630	620	95
ZLJ-1600*830	1600	21.5	2320*830*800	1270	120
ZLJ-1600*1000		22.3	2320*1000*800	1460	146
ZLJ-2000*830	2000	27.2	2720*830*950	1760	154
ZLJ-2000*1000		30.0	2720*1000*950	1860	182

OUR PORDUCT
STANDARD EXPORT PACKAGE
Company Information Qingdao Antai Mining Equipment Co., Ltd. is a manufacturer and international supplier of compounts for conveyor belt and wear protection technology and provides worldwide services for conveyor belt systems.
Our products mainly including special Cold Vulcanized Adhesive and Solvent,Hot Splicing Jointing Materials ,Pully lagging Materials ,Rubber Skrit, Impact Device (impact bar/impact bed ), UHMW-PE Rubber,Vulcanized Machine/Press,Conveyor Pully Rollers&Idler,Conveyor Belt Cleaner and Special Tools.
Antai products have been exported in Europe, Southeast Asia, the Middle East and North America, and occupied a place in intensely competitive global market. The products include all aspects of stuff related on conveyor belt splicing and vulcanizing.
FAQ 01) Q: Normal delivery time?
A: We have table produce line, hot sale products normally HAVE STOCK. If customized, need about 15 working days
02) Q: Will you test the machine before shipping?
A: Yes, each machine, we will install and test before shipping. And testing pressure is higher than working pressure.
03) Q: Can you print our logo or without any logo?
A: It's no problem OEM. Before order, please send us the clear document of your logo, also the authorization paper to allow us to print your logo.
