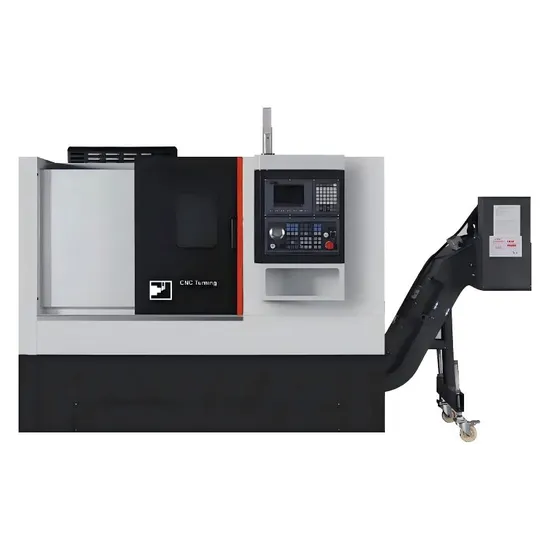

Turning center 106D
The horizontal turning center is not only good at traditional turning operations, but also integrates multiple processing functions such as drilling, boring, milling and tapping. One device can complete multiple processes, greatly reducing the number of workpiece transfers and improving production efficiency. The use of advanced servo control systems and precision guide rail design ensures that each processing can meet the micron-level accuracy requirements. Whether it is turning of complex contours or fine milling operations, it can be easily handled.
The overall casting bed structure has undergone strict heat treatment to ensure that the machine tool can still maintain stability and accuracy under long-term heavy-load processing. This provides users with higher processing reliability and longer service life. Horizontal turning centers are widely used in aerospace, automobile manufacturing, mold manufacturing, precision machinery and other fields.
106 series Parameter (Specification)

Item		Unit	106	106D	106DS	106D-Y
Maximum Swing Diameter Over The Bed		mm	φ460	φ500	φ500	φ550
Maximum Machining Diameter (Disc-Type)		mm	φ260	φ200	φ160	φ230
Maximum Machining Diameter (Shaft-Type)		mm	φ200	φ200	φ100	φ200
Maximum Swing Diameter Over The Slide		mm	φ200	φ200	φ160	φ200
Distance Between Centers		mm	360	360	/	360
Maximum Machining Length		mm	350	350	250	350
Maximum Drawbar Through Hole Diameter		mm	φ45	φ45	φ45	φ45
Spindle	Spindle Nose Type		A2-5	A2-5	A2-5	A2-5
	Spindle Through Hole Diameter	mm	φ56	φ56	φ56	φ56
	Spindle Bore Taper		MT-6	MT-6	MT-6	MT-6
	Three-Jaw Chuck Clamping Capacity		6 / 8 "	6 / 8 "	6 / 8"	6" / 8"
	Drawbar Actuation Type	Hydraulic pressure
	Maximum Spindle Speed	r/min	4000	4000 / 5000	5000	5000
	Main Motor Power	KW	7.5 / 11	7.5 / 11	11	11
Feed	X-Axis Travel	mm	200	185	185	185
	Z-Axis Travel	mm	370	370	370	370
	X/Z Axis Rapid Traverse Speed	m/min	20	20	20	20
Accuracy	Positioning Accuracy (X/Z)	mm	0.010/0.016	0.010/0.016	0.010/0.016	0.010/0.016
	Repeatability (X/Z)	mm	0.003/0.008	0.003/0.008	0.003/0.008	0.003/0.008
Tool Turret	Number of Tool Positions		8 / 12 ; 8 / 12 - Position	12 / 15; 12 / 15 - Position	15 ; 15 -Position	12 / 15 ; 12 / 15 - Position
	Drive Type	Servo
	Center Height	mm	80	70	70	127
	Tool Change Time (T-T)	Second	0.2	0.2	0.2	0.2
	Boring Tool Holder Specifications	mm	32	25	25	25
	Square Tool Holder Specifications	mm	25*25	20*20	20*20	20*20
Power head	Power head speed	r/min	/	4000	4000	4000
	Power head motor power	KW	/	1.7	2.4	2.4
	Power head torque	N.m	/	8.4	11.4	11.4
	Power head type	BMT	/	BMT 40 ER 20 / 25	BMT 40 ER 20 / 25	BMT 40 ER 20 / 25
Y-axis	Y-axis travel	mm	/	/	/	70
	Y-axis motor torque	N.m	/	/	/	8.4
	Y-axis screw	ball	/	/	/	3206
	Y-axis guide form	Rectangular hard track/wire track	/	/	/	Rectangular hard rail
Tailstock	Tailstock Sleeve Taper		MT-5	MT-5	/	MT-5
	Maximum/Minimum Tailstock Centered Workpiece Length	mm	380/100	380/100	/	380/100
Subspindle	Subspindle power	KW	/	/	3.7	/
	Maximum speed of auxiliary spindle	r/min	/	/	4500	/
	Secondary spindle nose form		/	/	A2-4	/
	Secondary spindle through hole diameter	mm	/	/	φ36	/
	Sub-spindle three-jaw chuck holding capacity		/	/	5"	/
	Secondary spindle rated torque	N.m	/	/	14.1	/
	Maximum torque of secondary spindle	N.m	/	/	30	/
Safety Guard		Fully Enclosed
CNC System (standard)			SYTEC 7TA-E	SYTEC 7TA-E	SYTEC 22TA	SYTEC 22TB
Machine Weight		Kg	About 3300	About 3500	About 3800	About 3800
Machine Dimensions (L×W×H)		mm	2350×1560×1715	2040×1560×1715	2260×1560×1715	2310×1510×2080
