Block Cutting Machine for Processing Granite Marble Stone Manufacturer

Product Description

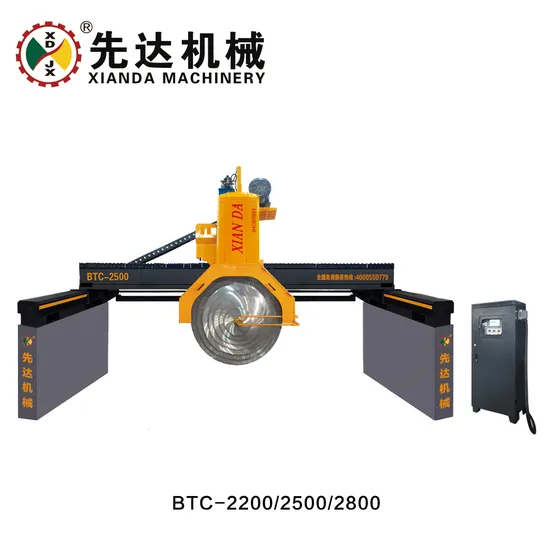

Block Granite Marble Cutting Bridge Machine BTC-2200/2500/2800 Detailed Photos
Product Description
This machine use inverter to control the left-right feeding, it can adjust the speed according to different kind stones. lt useshydraulic liting system, forward-backward slicing use high-precision screw nut driving, automatic slicing, main parts adoptimported materials; The block can be placed in the ground directly to save workable and its maintenance costs; Thus thewhole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability,easy-operating to suit specially cutting granite and marble block with high value.
Product Parameters

Parameter	Unit	BTC-2200	BTC-2500	BTC-2800
Max Blade Diameter	mm	φ2200	φ2500	φ2800
Max Processing Length	mm	3600	3300	3000
Max Moving Front&Back Travel	mm	2200	2200	2200
Max Lifting Stroke	mm	1350	1350	1350
Water Consumption	m³/h	15	15	15
Main Motor	kw	45/55	45/55	55
Gross Power	kw	56/66	56/66	66
Outline Dimension	mm	8000*4800*3700	8000*4800*3700	8000*4800*3700
Gross Weight	kg	14000	14500	15000

More Product

Middle Block Cutting Machine

Planar Stone Carving Machine

Infrared Bridge Cutting Machine

Dual Drive Block Cutting Machine

Block Dressing Machine

Integrated Bridge Cutting Machine

Company Profile
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and toolsin China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep"Top Technology and Superior Quality"as our standardfor all machines and got CE, ISO Quality Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evalution" , etcfor company.And we are always the sponsor for education as our CEO Mr Roy is enthusiasticabout the public welfare establishments.
Xianda always keep"Creat the highest value of your stone"as purpose,your visiting andcontacting is always welcomed.
Certifications
After Sales Service
* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
* After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
* We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training. FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacturer?
A: Yes,that we are the stone machinery factory for over 30 years.
