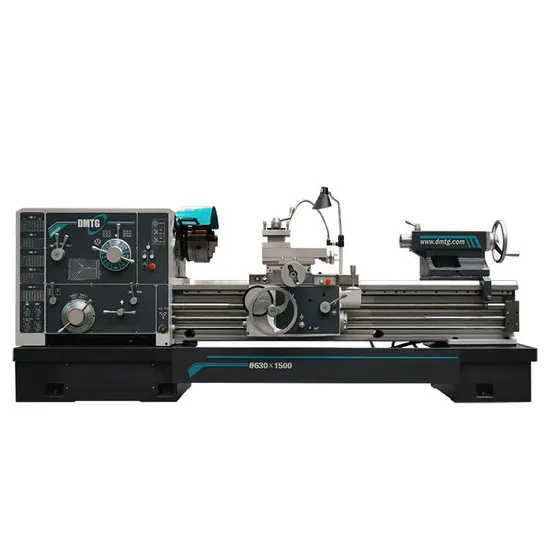

Heavy Duty Lathe Machine Cw6280e Turning Machine Manual Lathe 1000/1500/2000/3000/4000mm
Basic Info.
Model NO.
CW6280E
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Power Source
Electric
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month
Product Description
DMTG CW6280E Torno Manual Lathe Mill Combo Manual Lathe| MAIN PARAMETER | Max swing diameter over bed | mm | φ500 |
| Max swing diameter over cross slide | mm | φ290 | |
| Max workpiece length | mm | 1000/1500/2000/3000 | |
| Max cutting length | mm | 795/1245/1845/2745 | |
| Max turning diameter | mm | φ500 | |
| Spindle center height | mm | 250 | |
| Bed guideway width | mm | 394 | |
| SPINDLE | Spindle motor power | kW | 7.5 |
| Spindle bore | mm | φ82 | |
| Chuck size | mm | φ250 | |
| Taper of spindle bore | Metric φ90 1:20 | ||
| Type of spindle nose | D8 | ||
| Spindle speed ranges | r/min | 26-2000 | |
| TAILSTOCK | Diameter of tailstock quill | mm | φ75 |
| Travel of tailstock quill | mm | 150 | |
| Taper of tailstock quill | No.5 MT | ||
| TOOLPOST | Tool shank size (Vertical 4-position) | mm | 25X25 |
| Other | Machine dimension | mm | 2930*1223*1295 |
| Weight | mm | 2170kg |
