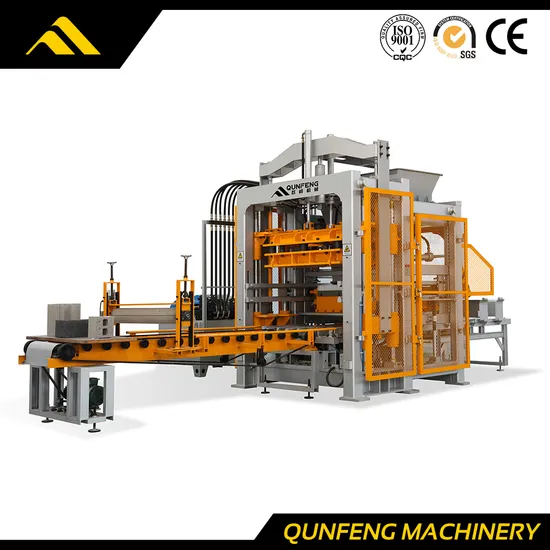

Brick Qunfeng Hollow Price Concrete Block Making Machine with Good Service Qf800

Product Description

Product Description

Features
This machine has the feature of easy operation, excellent products quality, stable performance and low operating cost, it can satisfy the various production requirements, like the baking-free bricks, permeable paver, hollow blocks, curb stones and so on. And the height of products also can be heightened according to customer's requirements; the maxium height of the blocks can be 300mm.
1) The unique arch beam demoulding structure ensure the accurate demoulding requirements, which avoid the damage to blocks and easy to maintain and adjust.
2) The advanced percussive vibration system has better vibration effect which can also reduce the shock to the framework , to ensure the machine with long lifespan
3) The feeding cart is driven by gearbox, which can reduce the cycle time and improve the production efficiency.
4) Forming machine is customized to satisfy customer's requirement, the max. Height of product can reach 300mm
Technical data:

Dimension	3000×2090×3000mm
Rating pressure	21MPa
Vibration	Table vibration
Vibration frequency	2800 - 4500r/min
Pallet size	1100×620mm
Cycle time	11-25sec.
Power	41kW
